Arduino Compatible Pro Mini

$8.00

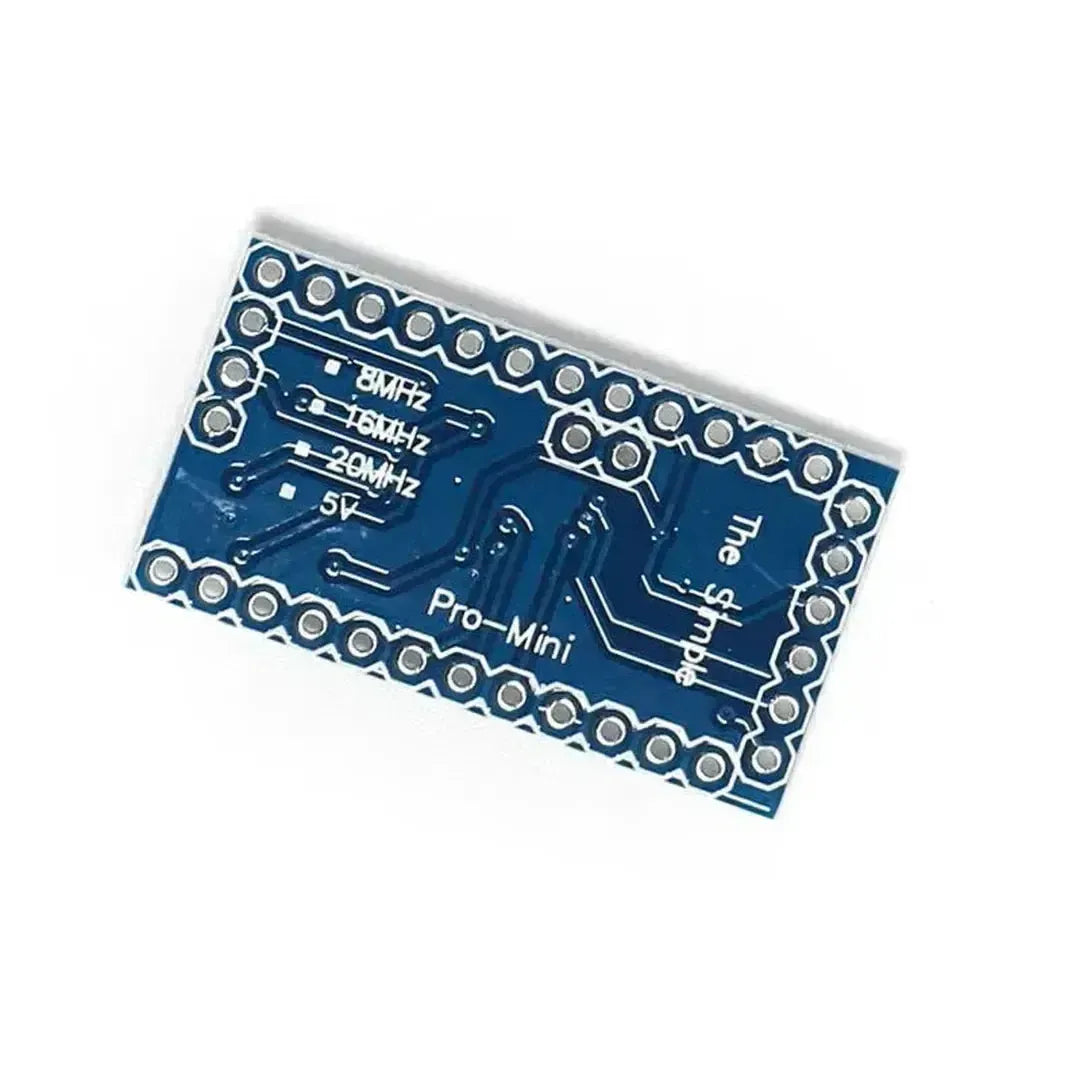

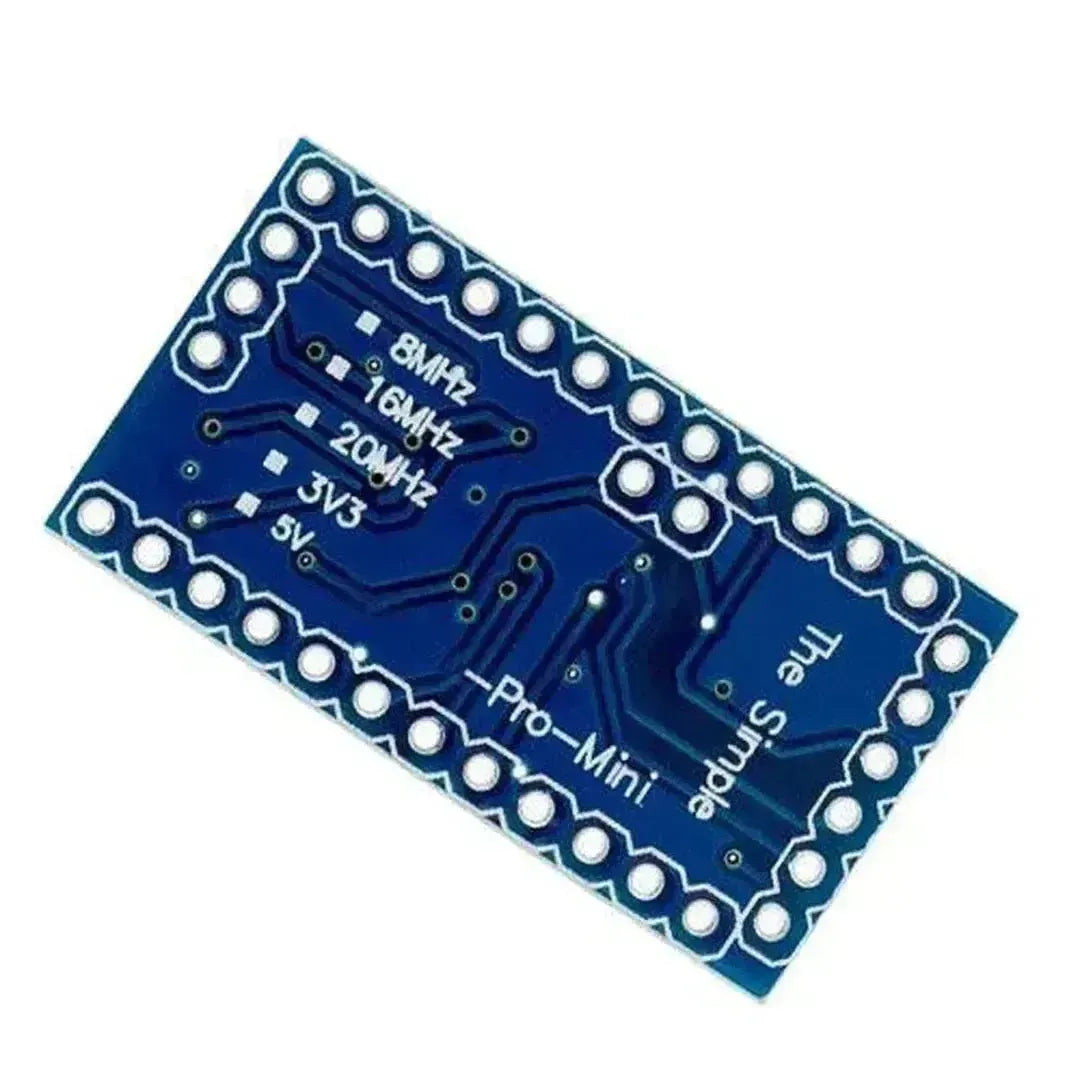

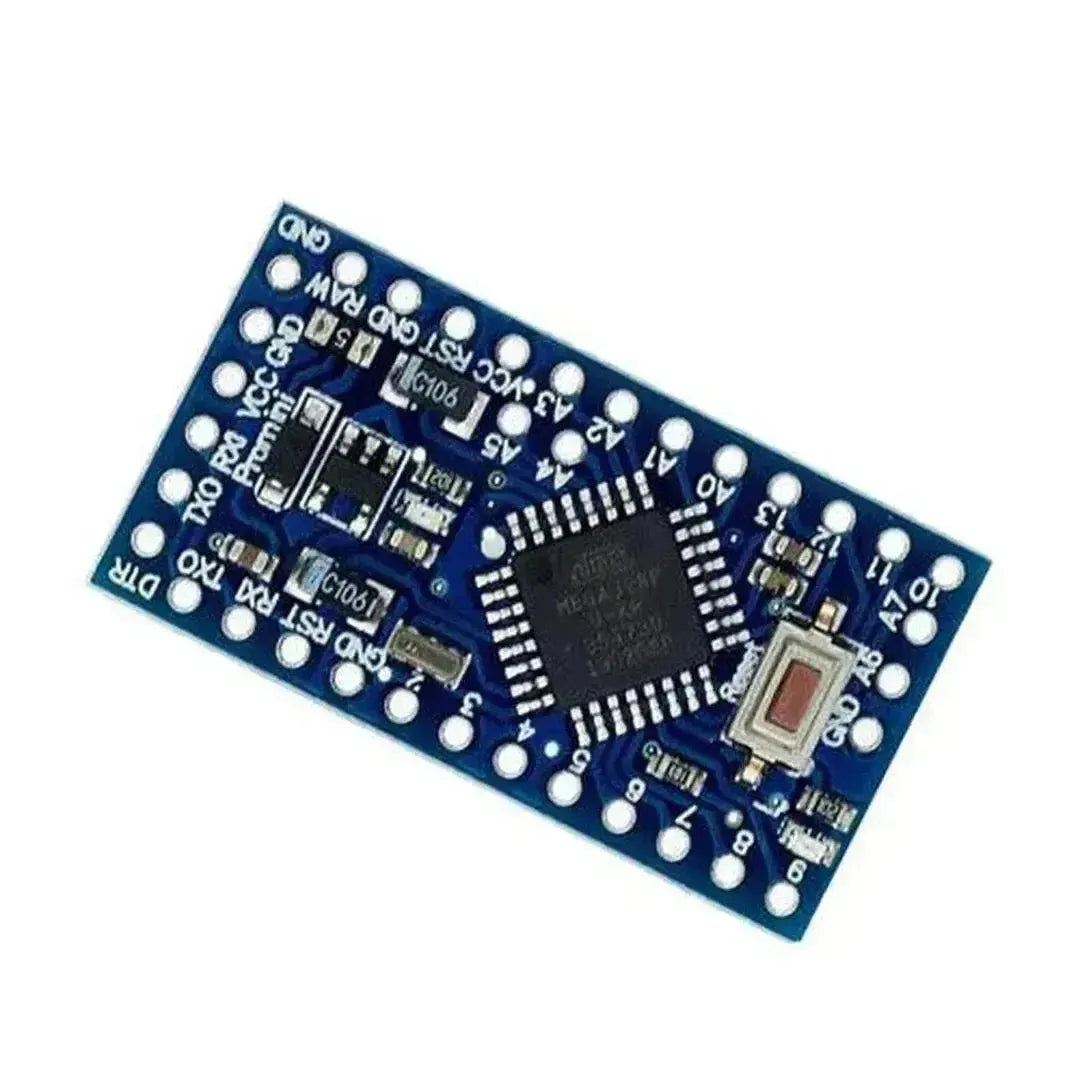

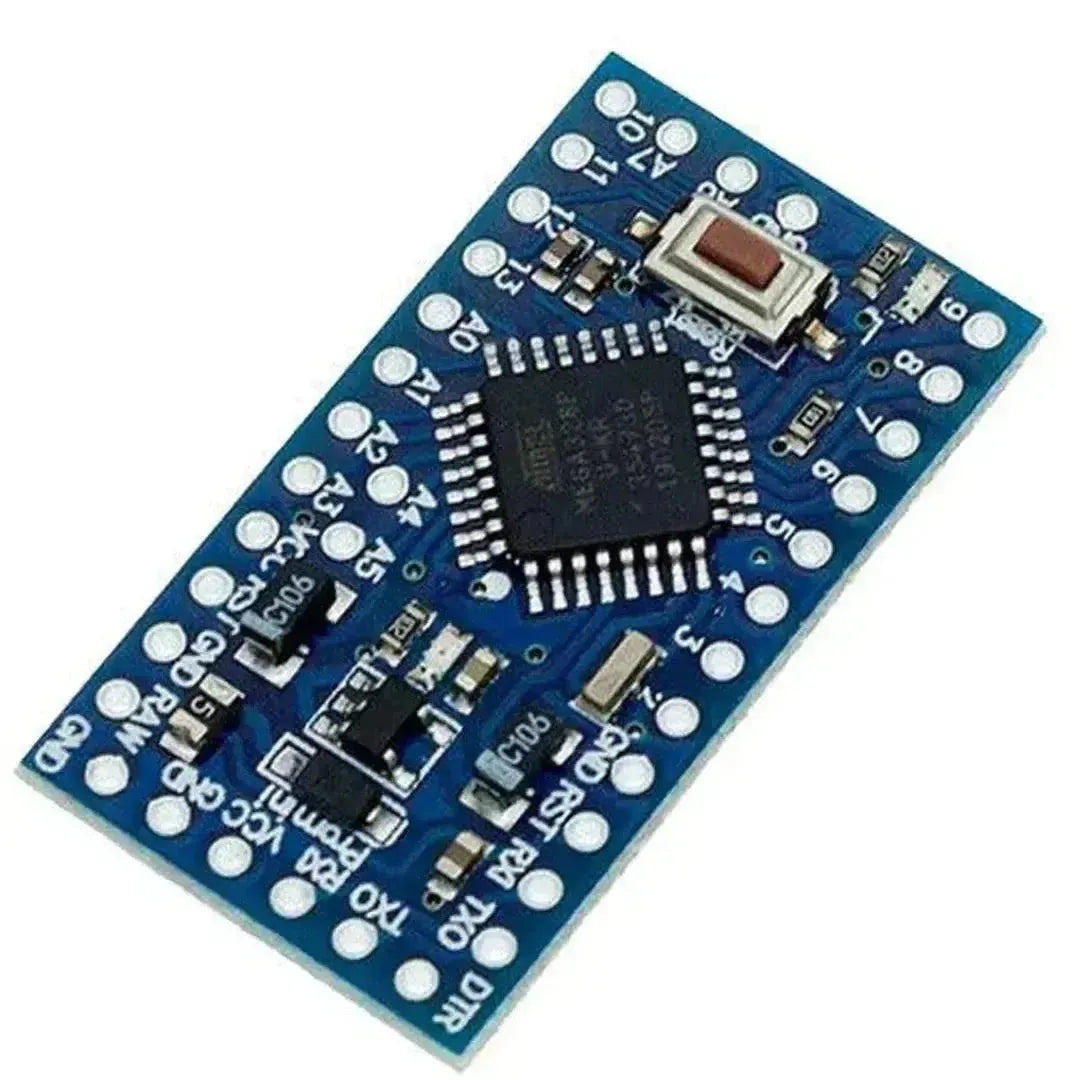

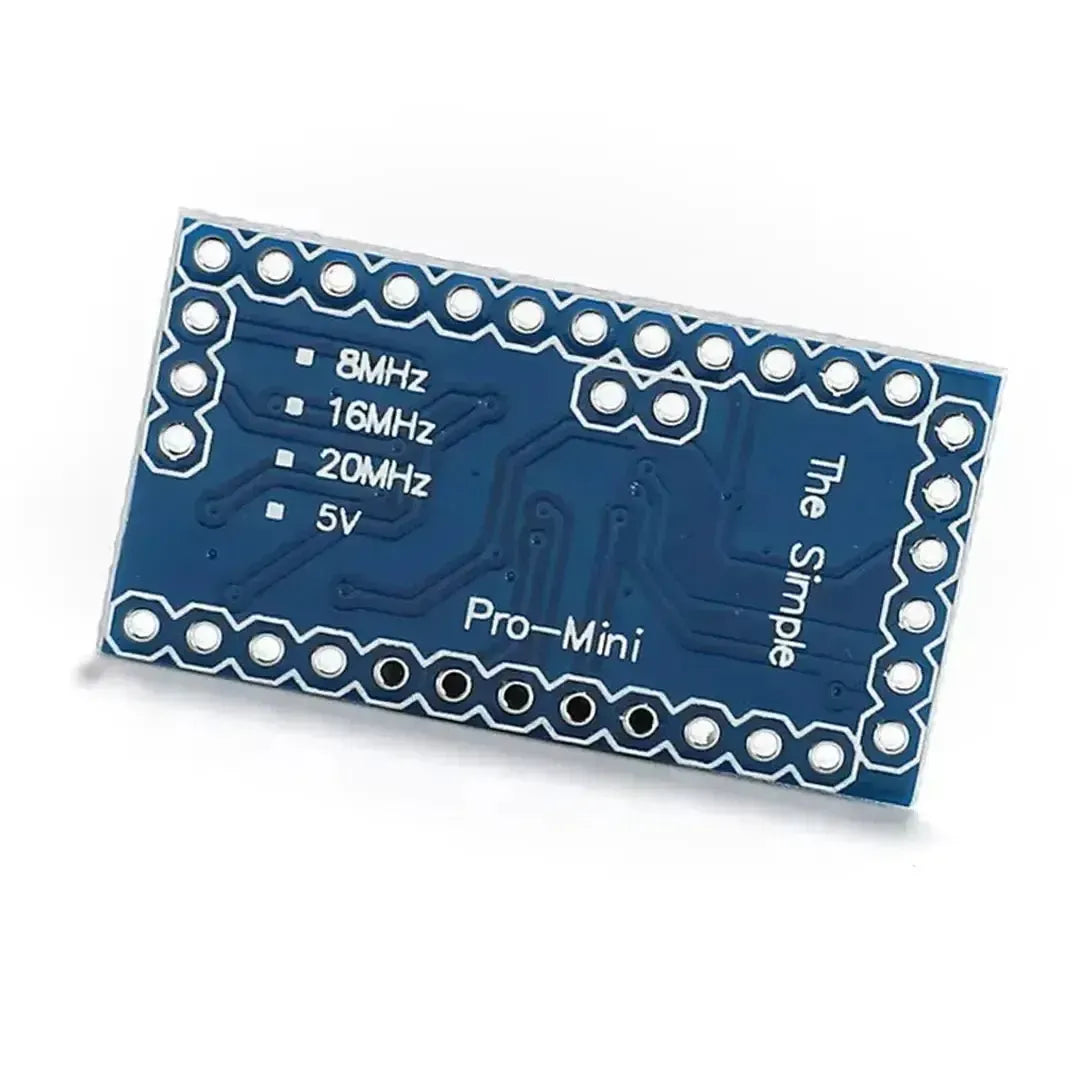

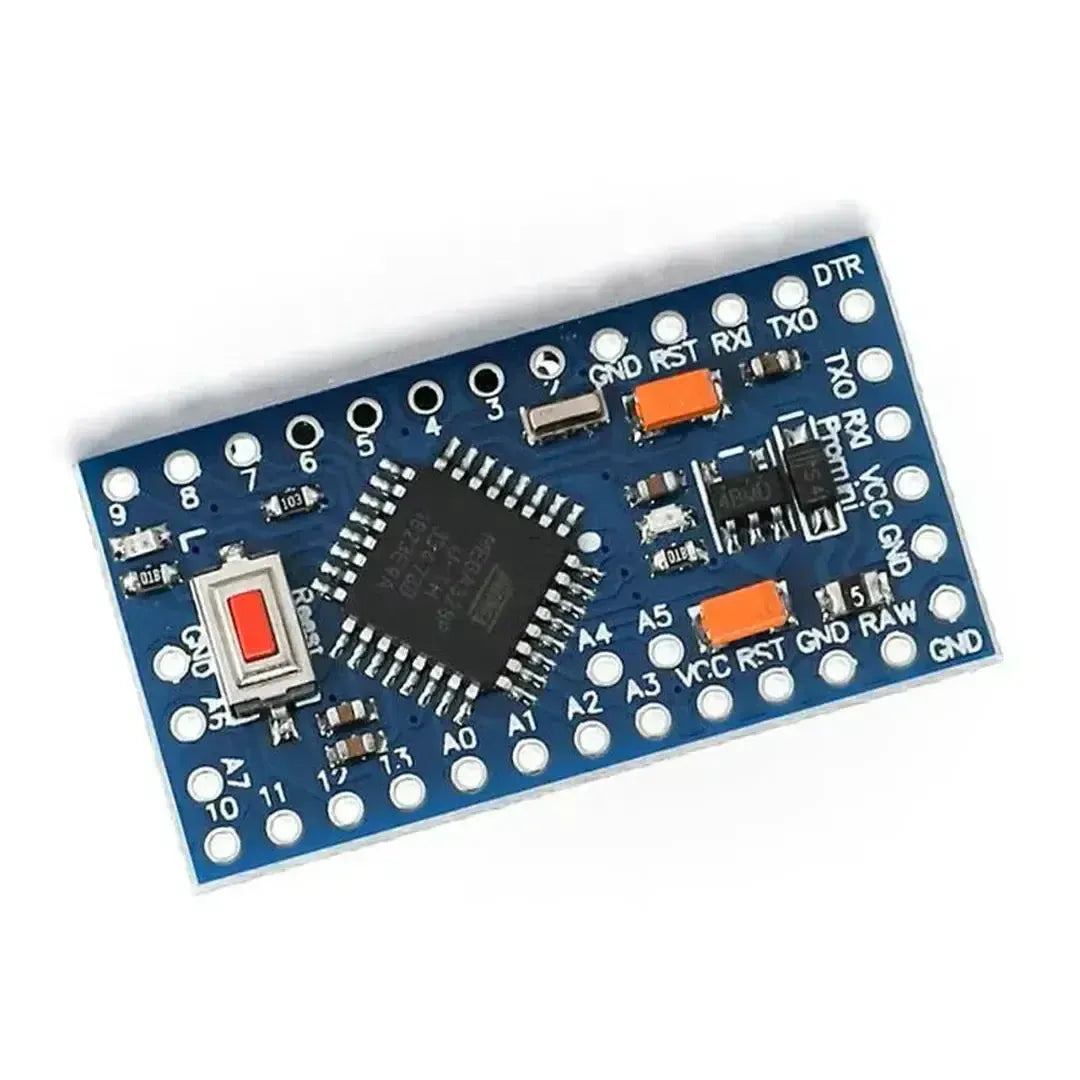

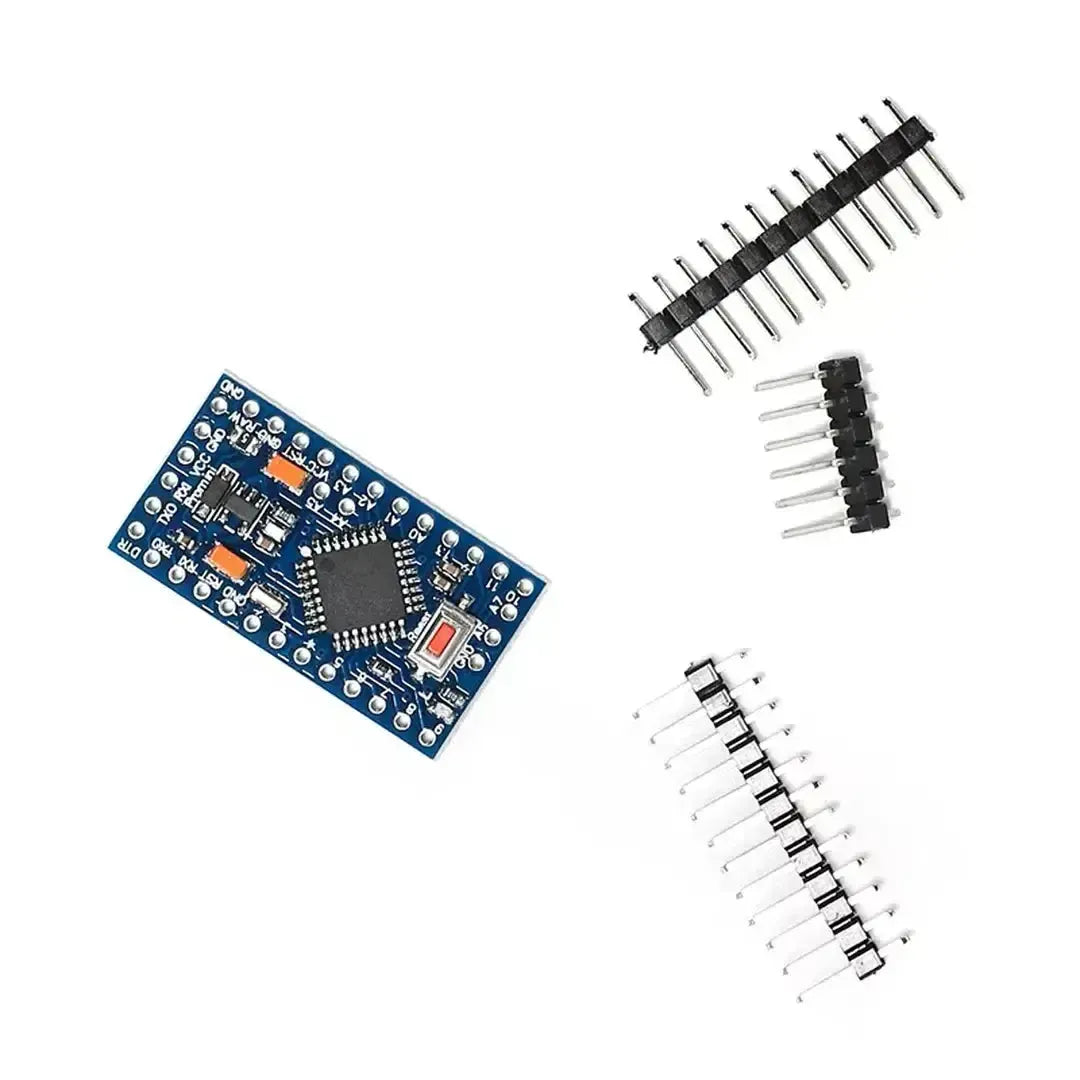

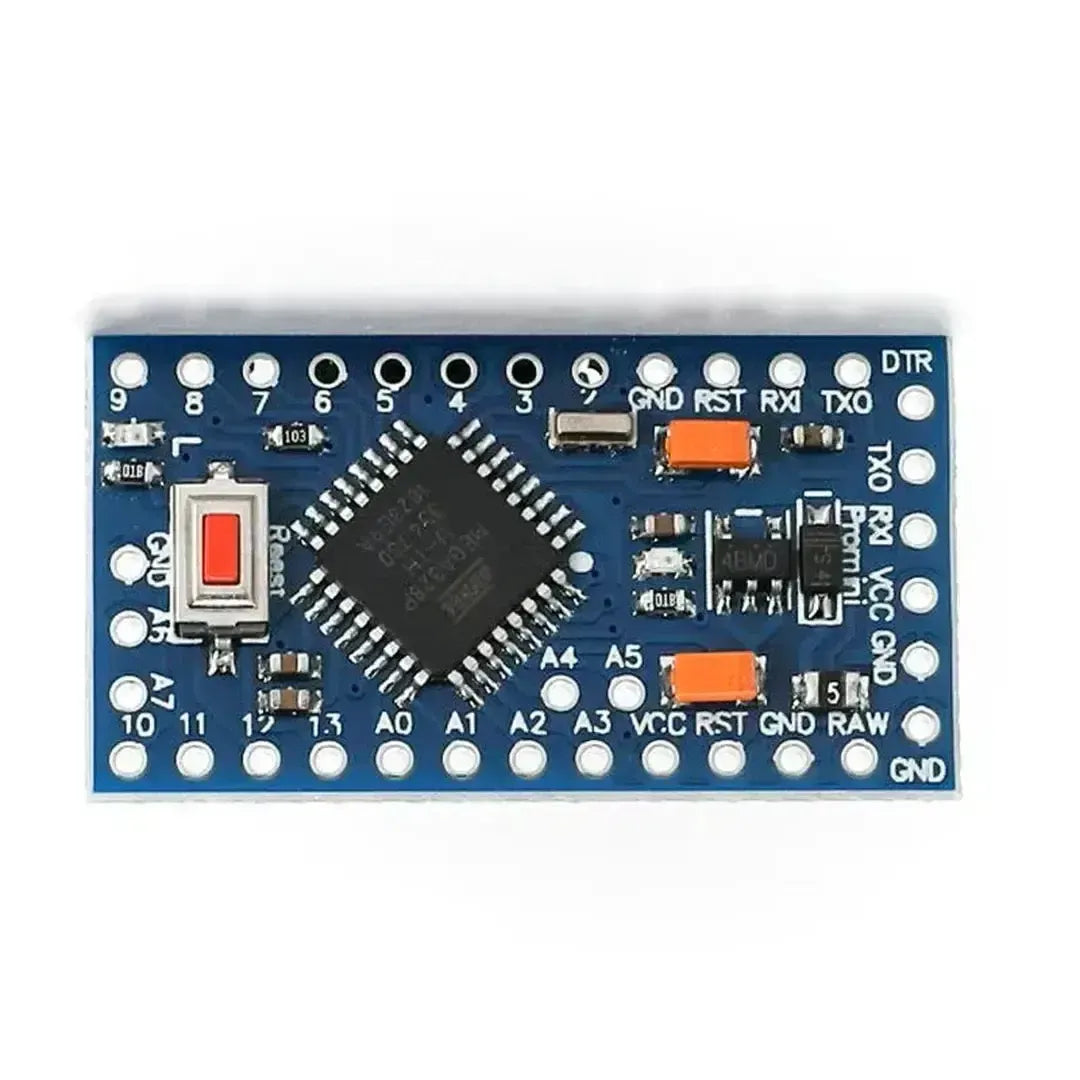

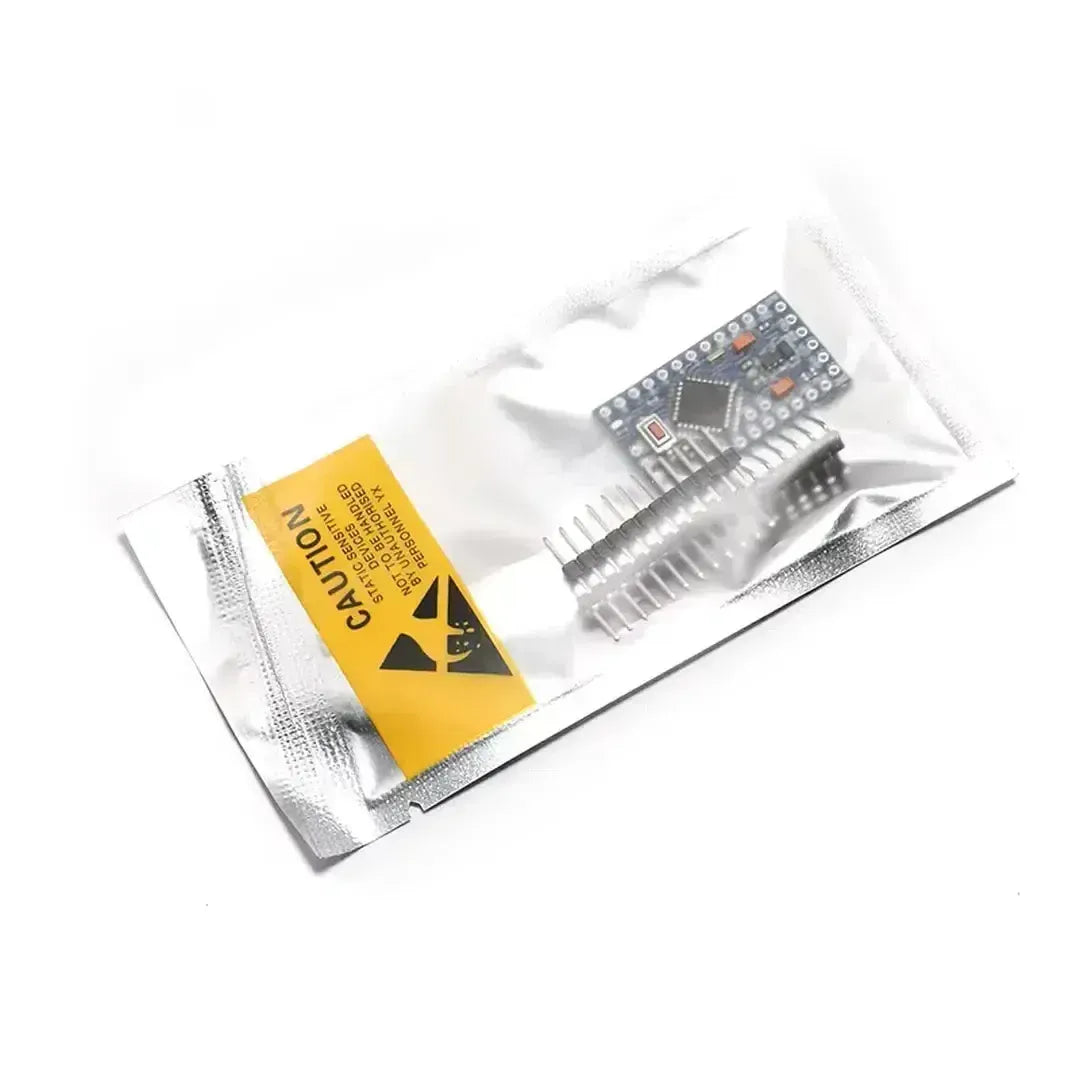

Arduino Pro Mini 5V 16MHz

Ang Arduino Pro Mini 5V 16MHz ay isang compact at cost-effective na microcontroller board na tugma sa Arduino Pro Mini series. Pinapatakbo ng isang 16MHz Atmel Mega 328P processor, ito ay angkop para sa parehong simple at kumplikadong mga proyekto.

Mga Pangunahing Tampok:

Sukat: 33mm x 18mm x 5mm (walang mga header)
Boltahe ng Input: Inirerekomenda ang 5-9V
Digital I/O: 14 pins (6 PWM kaya)
Mga Analog na Input: 8 na may 10-bit na resolusyon
Pinakamataas na Kasalukuyang Output: 40mA bawat pin, kabuuang 150mA
Memorya: 32KB Flash (2KB para sa bootloader)
Programming: Nangangailangan ng serial interface (USB-to-Serial converter o FTDI breakout board)

Mga Koneksyon sa Programming:

GND: GND (Serial Adapter) -> GND (Arduino Pro Mini)
VCC: VCC (Serial Adapter) -> VCC (Arduino Pro Mini) [Itakda sa 5V]
TX: TX (Serial Adapter) -> RX1 (Arduino Pro Mini)
RX: RX (Serial Adapter) -> TX0 (Arduino Pro Mini)
DTS: DTS (Serial Adapter) -> DTR (Arduino Pro Mini) [Maaaring may label na RTS/DTR]

Setup ng IDE:

Piliin ang 'Arduino Pro o Pro Mini' bilang uri ng board.
Piliin ang 'ATMega328 5V 16MHz' bilang processor.
Tiyaking napili ang iyong Serial Port adapter.
Sinusuportahan ng board ang Auto-Reset sa pamamagitan ng DTS, kaya hindi na kailangang pindutin nang manu-mano ang reset button.

Ginagawa nitong ang Arduino Pro Mini 5V 16MHz isang mainam na pagpipilian para sa isang malawak na hanay ng mga elektronikong proyekto dahil sa compact na laki nito, mas mababang gastos, at mas mababang paggamit ng kuryente.
