DeepCool SC790 2-in-1 Addressable RGB & PWM Fan Hub, 6-Port, Connect up to 6 PWM ARGB 3-Pin Fans Simultaneously While Occupying Minimal Motherboard Headers, Magnetic for Easy Installation
$33.00

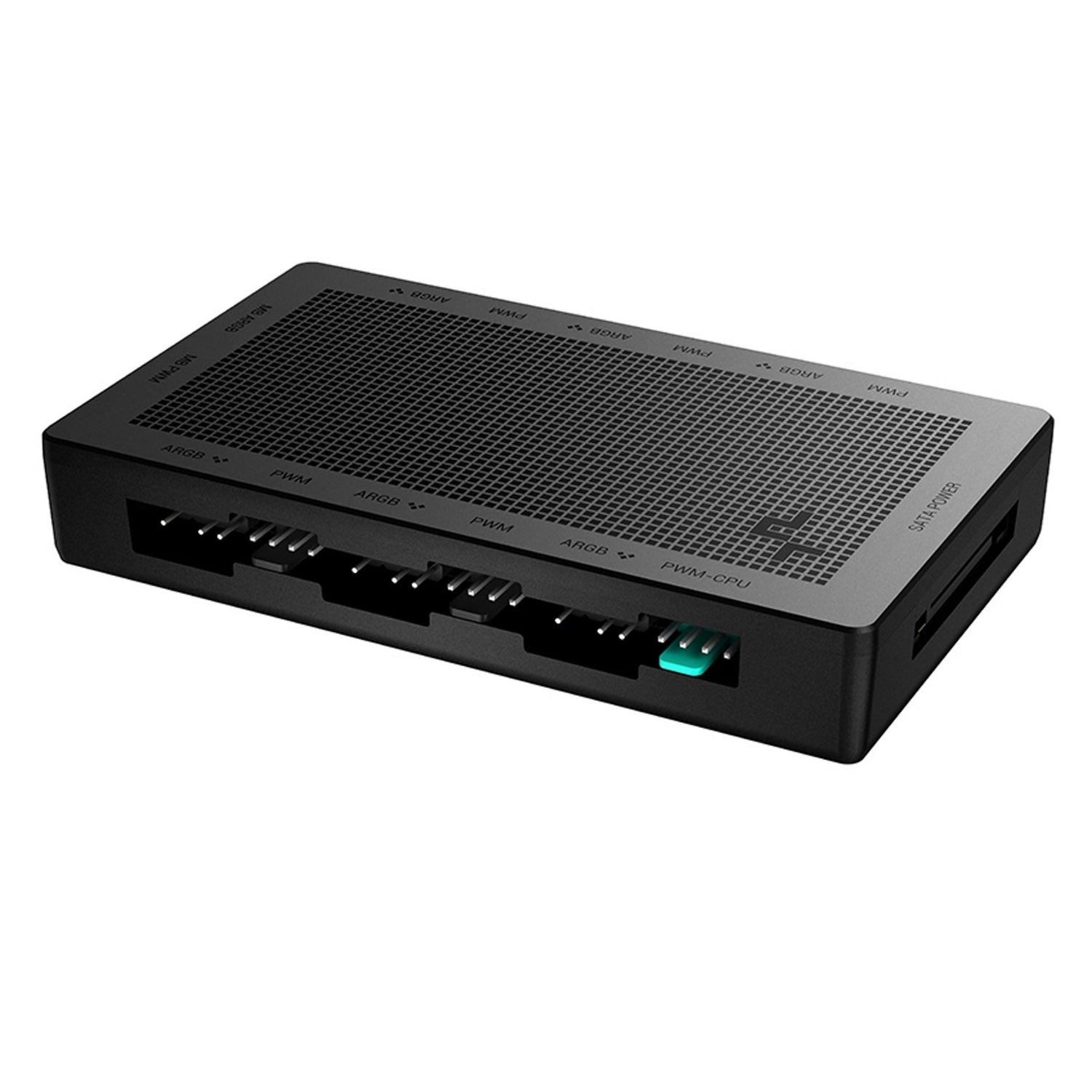

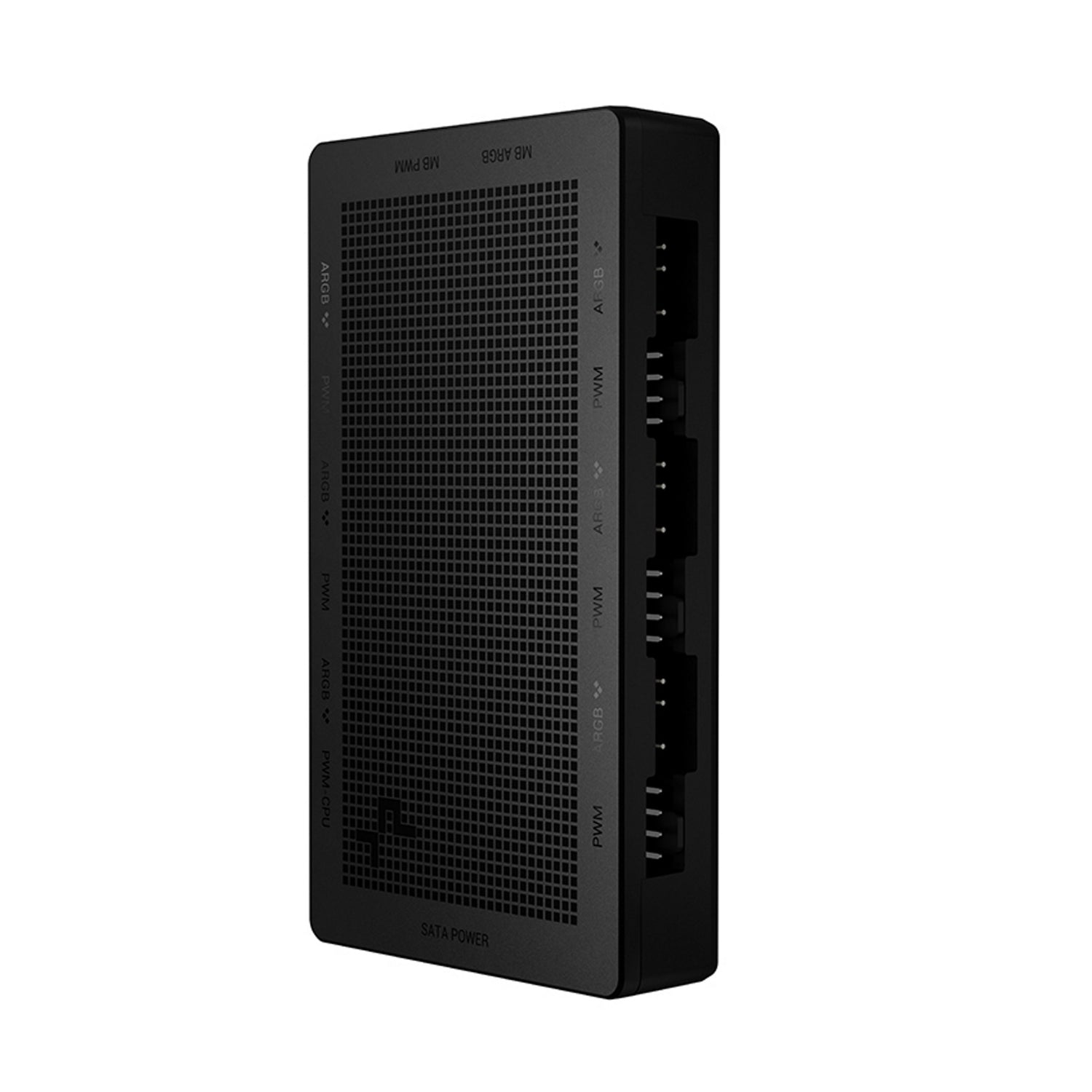

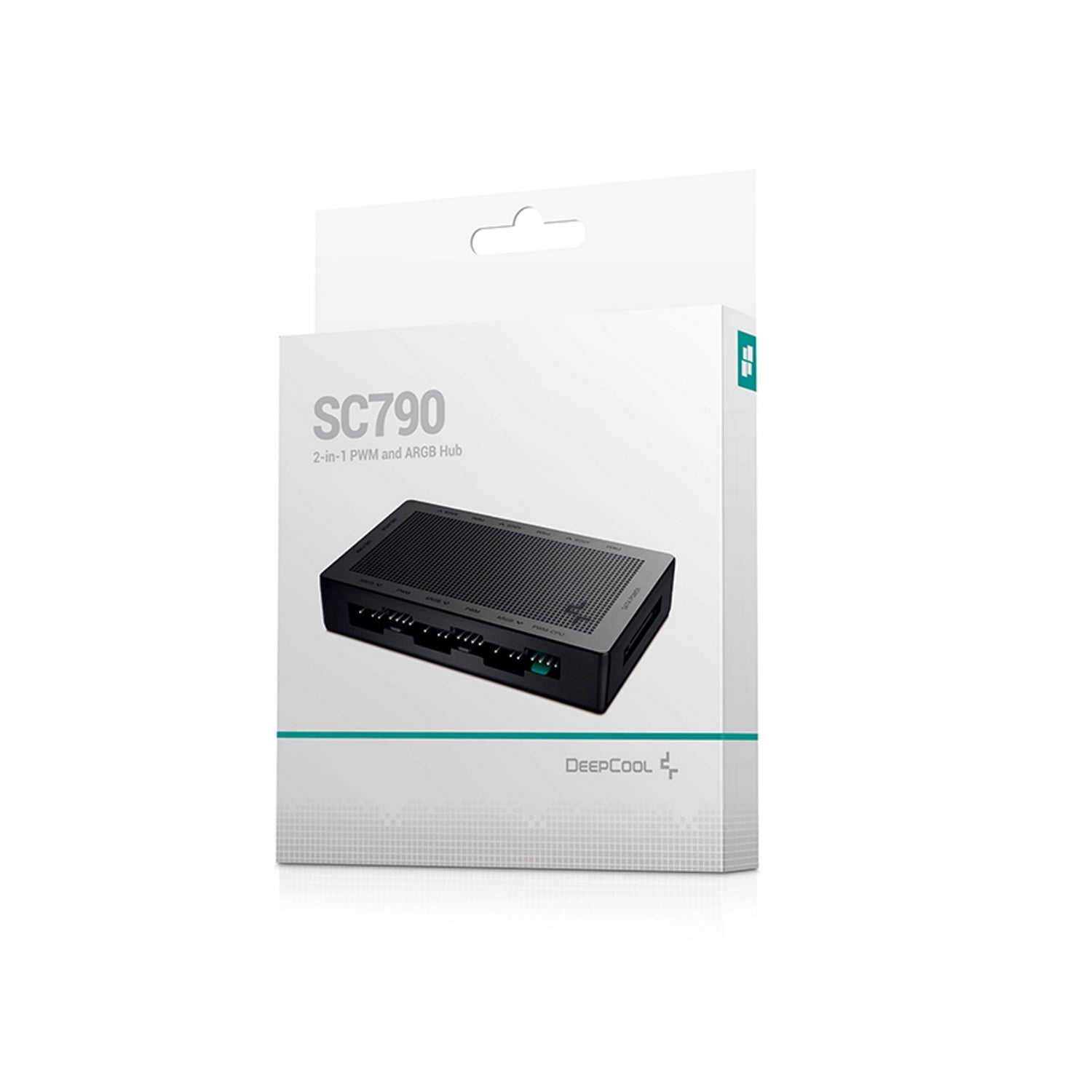

DeepCool SC790 2‑in‑1 PWM & RGB Hub
The DeepCool SC790 2‑in‑1 PWM & RGB hub provides centralized control for up to 6 PWM ARGB fans while using minimal motherboard headers. Designed for clean builds and synchronized lighting, it combines fan speed and addressable RGB control in a compact, magnetic housing.
Key Features
- Controls up to 6 PWM ARGB fans simultaneously
- Connects to a 3‑pin 5V ARGB header and 4‑pin PWM header on the motherboard
- SATA power interface for stable, continuous power to all connected devices
- Magnetic, compact, and sturdy case for flexible mounting behind the motherboard tray or in other convenient locations
- Compatible with major motherboard lighting software:
- Asus Aura Sync
- Gigabyte RGB Fusion
- MSI Mystic Light Sync
- ASRock Polychrome Sync
- Not compatible with 12V 4‑Pin RGB devices
PWM & ARGB Splitter Hub
The SC790 extends both PWM and ARGB signals from the motherboard to up to six fans, enabling total speed and lighting synchronization across your system. The included SATA power connection helps ensure consistent power delivery for all connected fans and ARGB devices.
Specifications
| Specification | Detail |
|---|---|
| Product Dimension | 102 x 60 x 17 mm |
| Net Weight | 69 g |
| Port Type | ARGB 3‑Pin, PWM 4‑Pin |
| Fan Ports | 6 Ports x 4‑Pin PWM |
| Length of Fan Connector Cable | 24 AWG, 500 mm |
| Fan Rated Voltage | 12V DC |
| Fan Rated Current | 2.0A (1 Port) / Total 4.5A (6 Ports) |
| Addressable RGB Ports | 6 Ports x 3‑Pin Addressable RGB |
| Length of ARGB Connector Cable | 24 AWG, 538 mm (Asus/ASRock/MSI) + 50 mm (Gigabyte) |
| RGB Rated Voltage | 5V DC |
| RGB Safety Current | 2.0A (1 Port) / Total 4.5A (6 Ports) |
| Power Connector | SATA Power |
| Power Safety Current | 4.5A Max |
| Mounting Method | Magnetic |
| Product Colour | Black |
