DS3230 Pro 180°
$29.00
DS3230Pro 30KG Large Torque Digital Servo
The DS3230Pro is a high-torque digital servo designed for stable performance across a wide temperature range. Built with a durable engineering plastic and aluminum alloy case, it combines precise digital control with robust mechanical construction.
Environmental Conditions
-
Storage temperature: -30°C to 80°C
-
Operating temperature: -25°C to 70°C
Mechanical Specifications
-

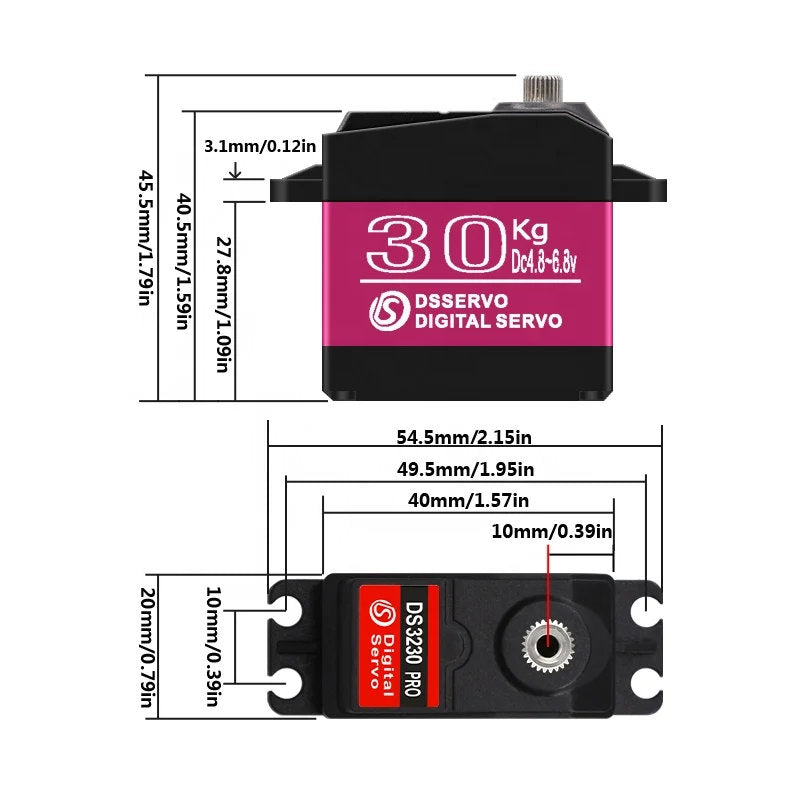

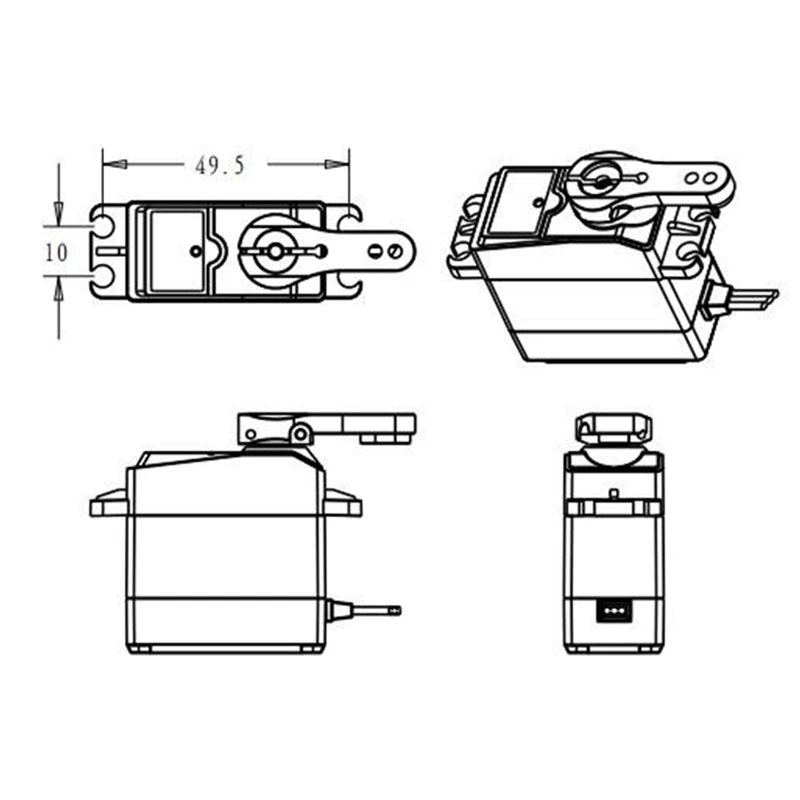

Dimensions: 40.0 × 20 × 40.5 mm
-
Weight: 78 g ±2 g
-
Limit angle: 180°
-
Bearing: Dual ball bearing (2BB)
-
Horn gear spline: 25T
-
Diameter: 5.9 mm
-
-

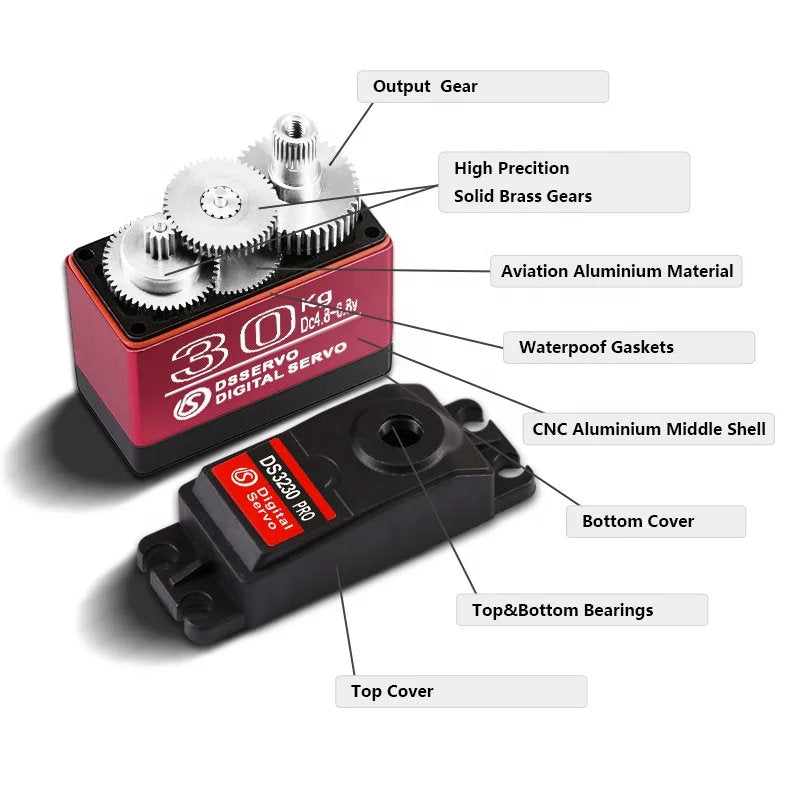

Case material: Engineering plastics + aluminum alloy
-

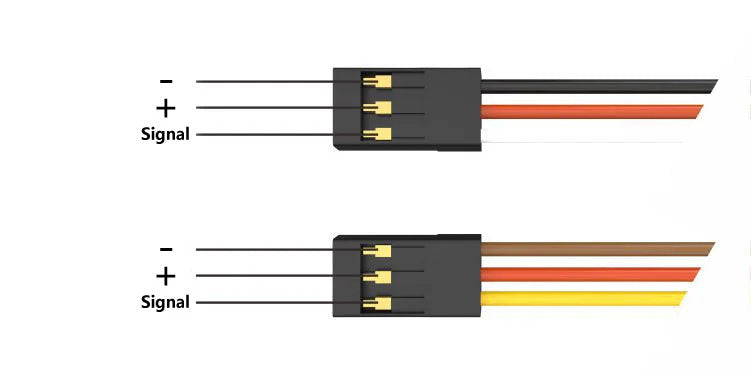

Connector wire length: 320 mm ±5 mm
-
Motor type: Carbon brush motor
Electrical Specifications
-
Working voltage range: 4.8 – 6.8 V
-
Command signal: Pulse Width Modulation (PWM)
-
Amplifier type: Digital controller
-
Pulse width range: 500–2500 µsec
-
Neutral position: 1500 µsec
-
Running degree:
-
180° ±3° (PWM 500–2500 µsec)
-
270° ±3° (PWM 500–2500 µsec)
-
-
Dead band width: 3 µsec
-
Rotating direction: Counterclockwise (1000–2000 µsec)

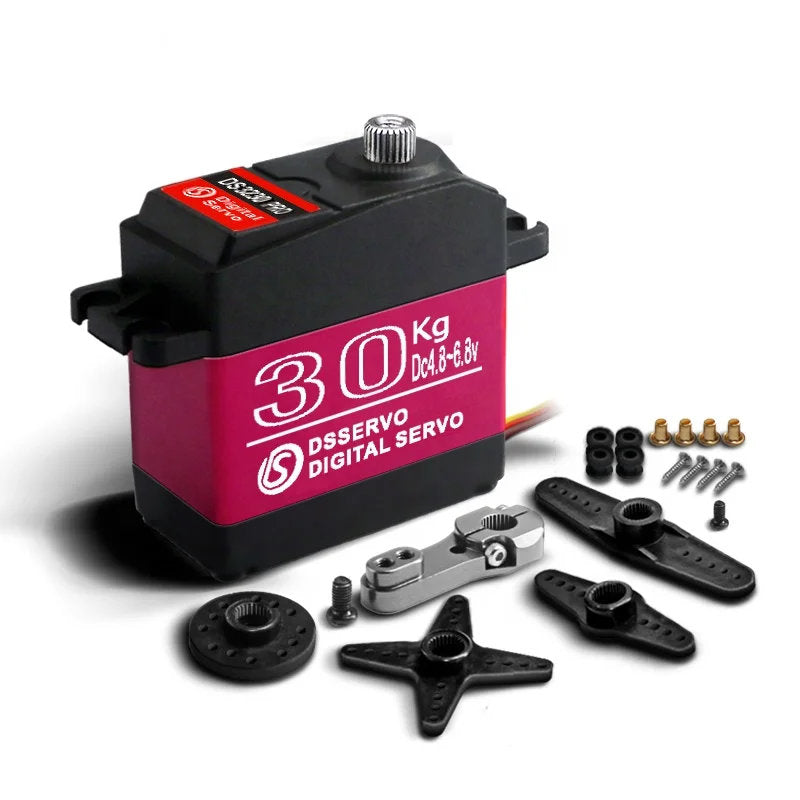

Package Contents
-
1 × Digital servo
-
1 × 25T adjustable metal servo arm
-
1 × Accessory bag
This digital servo offers precise control, solid construction, and reliable operation for applications requiring large torque and consistent performance.
