Codegen 2U Rackmount 405mm Deep 3 x 80mm HDB PWM Fans Included
$203.00

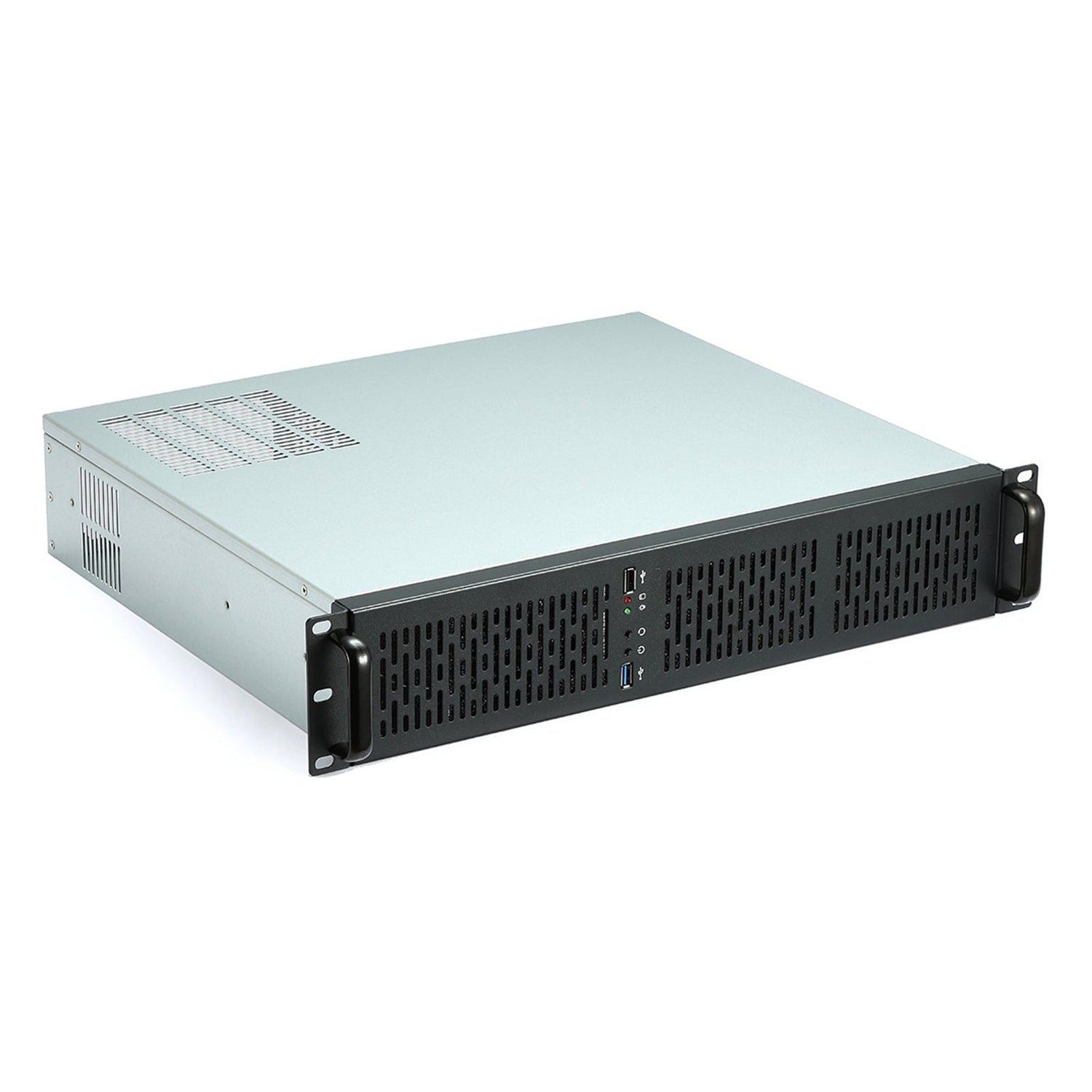

2U Rackmount Case – Compact, Efficient Server Chassis
This 2U rackmount case is designed for compact server builds, offering efficient cooling, versatile storage options, and support for Micro-ATX and Mini ITX motherboards. With a depth of just 380mm and a width of 430mm (excluding handles), it’s ideal for space-conscious installations.
Key Features
2U Rackmount Form Factor
- Height: 2U
- Dimensions (excluding handles): 430mm (W) x 89mm (H) x 380mm (D)
- Dimensions (including handles): 482mm (W) x 89mm (H) x 405mm (D)
Server Motherboard Support
- Supports Micro-ATX and Mini ITX motherboards
- Maximum motherboard size: 275mm (W) x 250mm (D)
Integrated Cooling – 3 x 80mm PWM Fans Included
- Includes 3 x 80mm HDB PWM black fans (front)
- Powered via 4-pin PWM fan connector
- Automatic speed control via motherboard PWM, adjusting fan speed according to system temperature
- Helps maintain quieter operation by using only as much fan power as needed
Flexible HDD & SSD Storage Options
Shared hard drive bays support multiple configurations, including:
- Up to 4 x 3.5" HDDs
- 1 x 2.5" SSD & 3 x 3.5" HDDs
- 3 x 2.5" SSDs & 1 x 3.5" HDD
- Internal bays:
- 4 x 3.5" internal
- 3 x 2.5" internal
- Note: 2.5" bays share with 3.5" bays
Optimised Air Ventilation
- Top panel ventilation above the PSU location helps improve airflow inside the chassis
- Designed to aid in keeping internal components performing at their best
Server Status LEDs
- Power LED: 1 x green (machine state)
- HDD LED: 1 x red (HDD activity)
Front Panel & Controls
- Power Switch: 1 x
- Reset Switch: 1 x
- LED Indicators: 1 x Power, 1 x HDD
- I/O Ports:
- 1 x USB 3.0
- 1 x USB 2.0
Hardware Compatibility
- Motherboard Support: Micro ATX, Mini ITX
- PSU Support: Standard ATX
- PSU Location: Rear right, bottom
- PSU Maximum Length: 200mm
- GPU Maximum Length: 180mm
- CPU Cooler Maximum Height: 67mm
- Expansion Slots: 4 x half-height
- Water Cooling: Not water cooling ready
Construction & Design
- Form Factor: Rackmount
- Body Material: 1.0mm SGCC
- Front Bezel Material: Metal
- Side Panel: Metal
- Front Bezel Colour: Black
- Body Colour: Bare metal
- Internal Cable Management Depth: 85mm
- Gaming Case: No
- PSU Included: No
Cooling Overview
- Front: Space for 3 x 80mm fans
- 3 x 80mm HDB PWM black fans included
- Top: None
- Rear: None
- Side: None
- Bottom: None
Technical Specifications Table
| Category | Specification |
|---|---|
| Form Factor (Chassis) | 2U Rackmount |
| Dimensions (excl. handles) | 430mm (W) x 89mm (H) x 380mm (D) |
| Dimensions (incl. handles) | 482mm (W) x 89mm (H) x 405mm (D) |
| Motherboard Support | Micro ATX, Mini ITX |
| Max Motherboard Size | 275mm (W) x 250mm (D) |
| PSU Support | Standard ATX |
| PSU Location | Rear right, bottom |
| PSU Max. Length | 200mm |
| GPU Max. Length | 180mm |
| CPU Cooler Max. Height | 67mm |
| Cooling (Included) | 3 x 80mm HDB PWM black fans (front) |
| Fan Power Connector | 4-pin PWM |
| Internal Bays | 4 x 3.5" internal, 3 x 2.5" internal |
| Drive Bay Notes | 2.5" bays share with 3.5" bays |
| Expansion Slots | 4 x half-height |
| Front I/O | 1 x USB 3.0, 1 x USB 2.0 |
| Control Indicators | 1 x Power switch, 1 x Reset switch |
| LEDs | 1 x Power (green), 1 x HDD (red) |
| Body Material | 1.0mm SGCC |
| Front Bezel Material | Metal |
| Side Panel | Metal |
| Front Bezel Colour | Black |
| Body Colour | Bare metal |
| Internal Cable Depth | 85mm |
| Water Cooling | Not water cooling ready |
| Gaming Case | No |
| PSU Included | No |
