GP2Y1010AU0F Module

$10.00

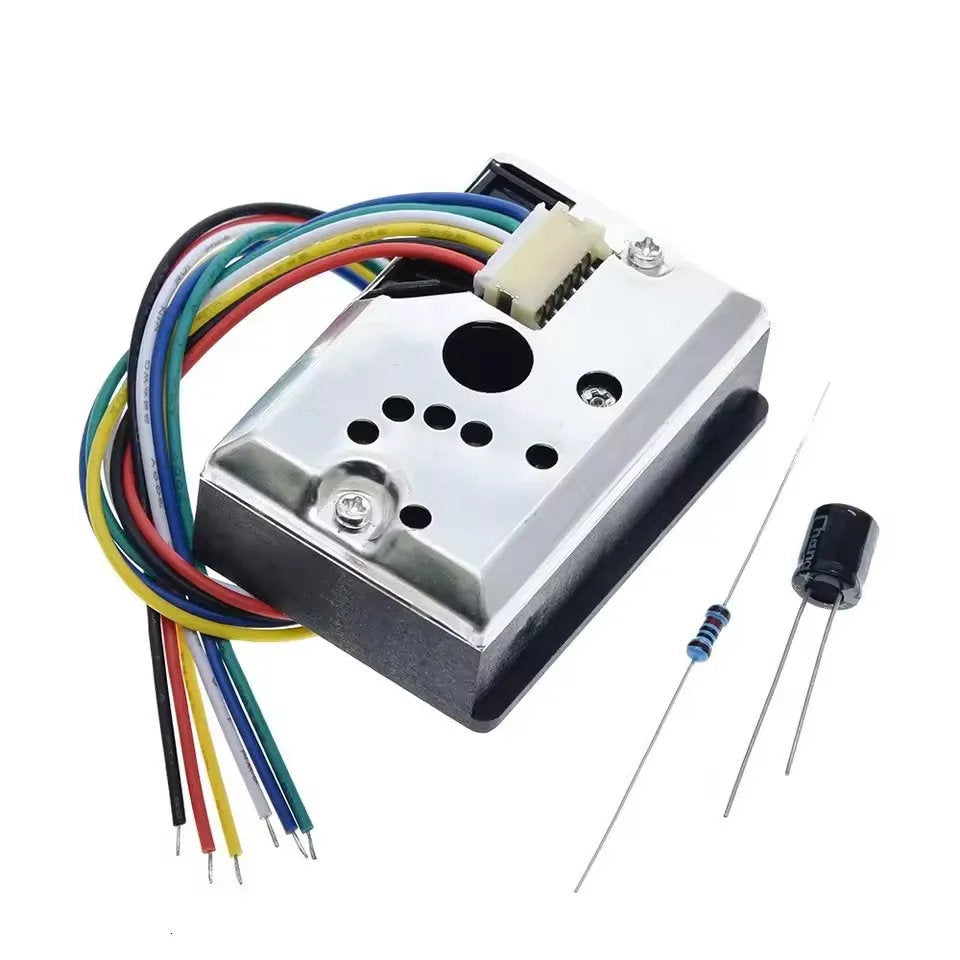

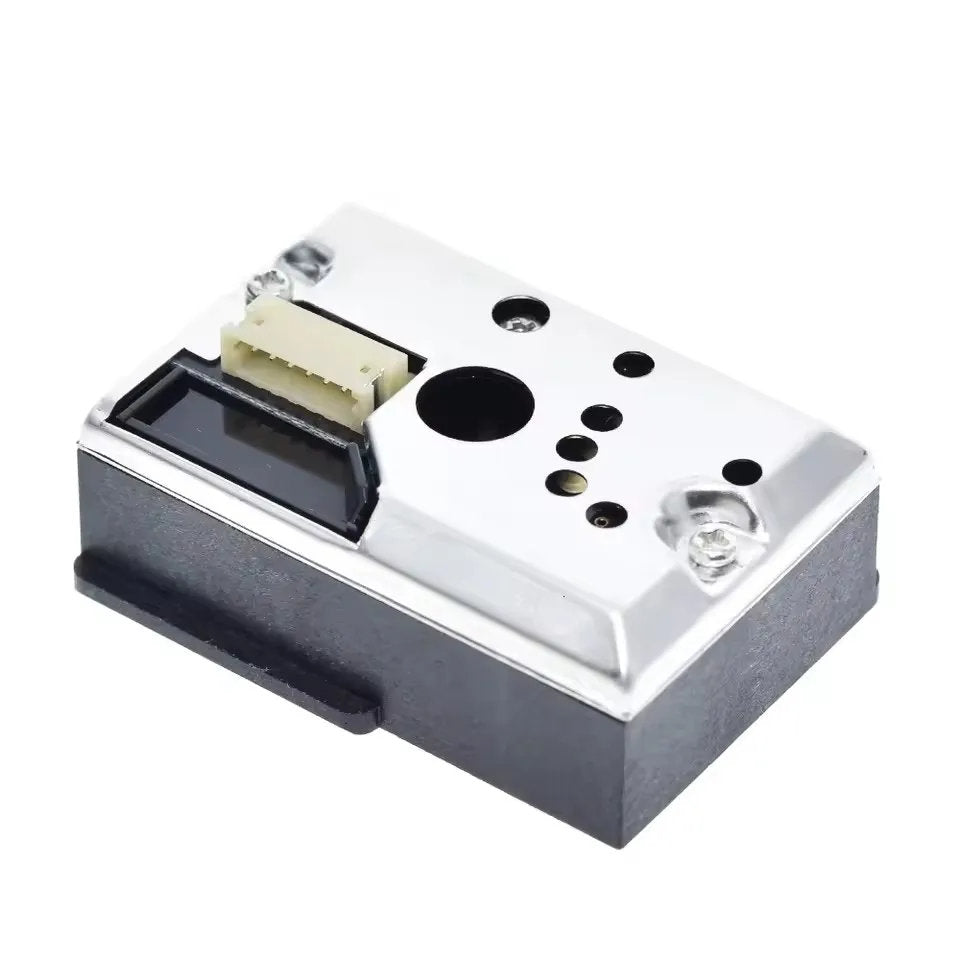

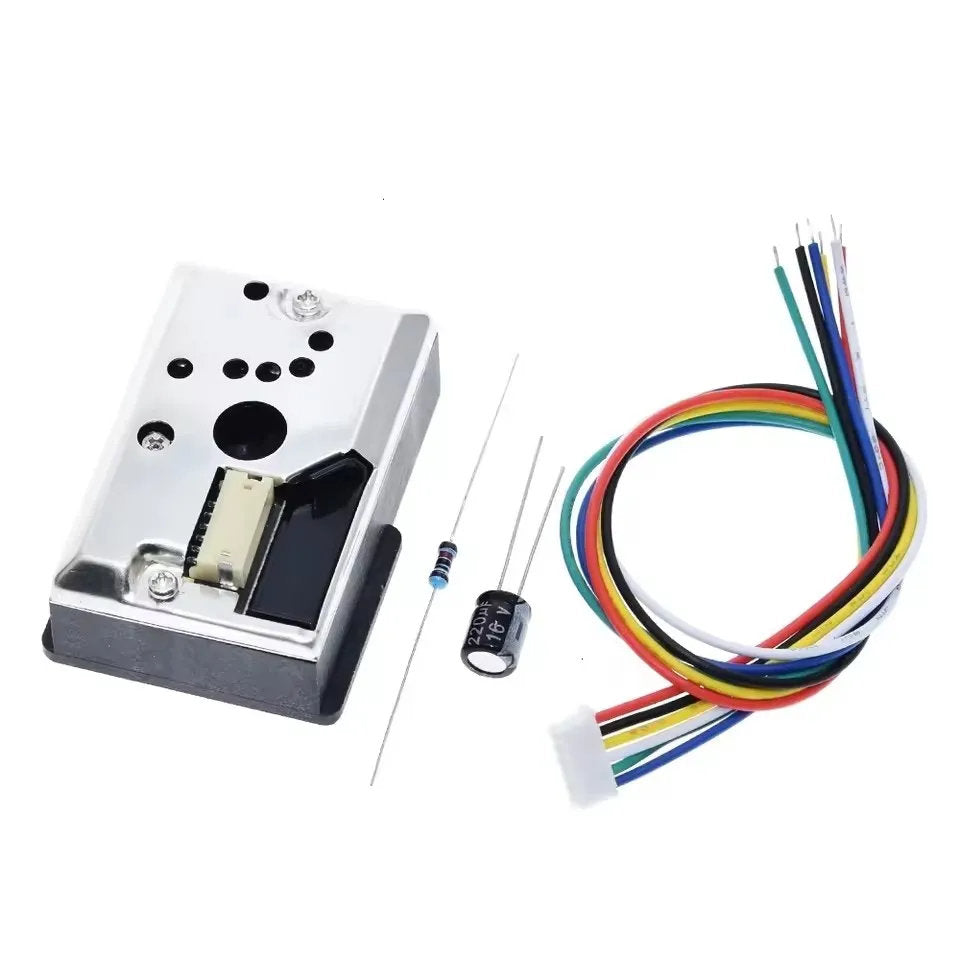

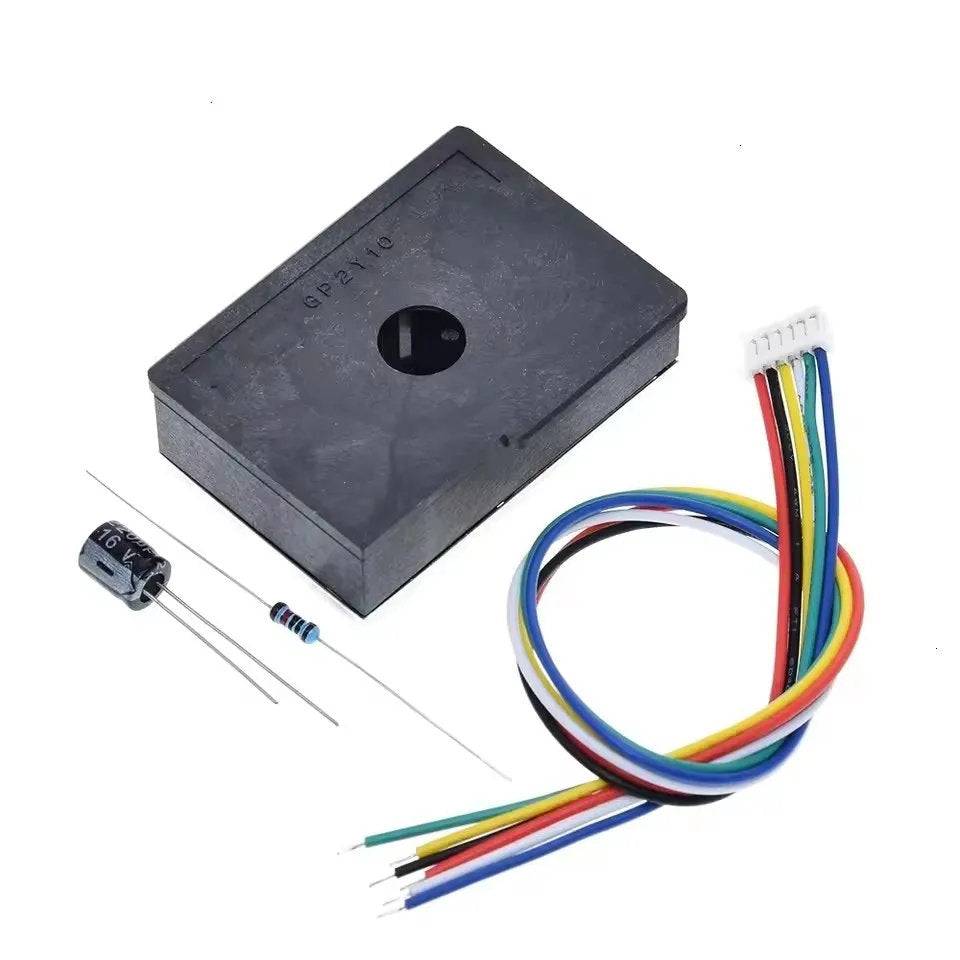

GP2Y1010AU0F Dust Sensor Module

The GP2Y1010AU0F dust sensor module is designed for particle detection applications, offering stable electrical characteristics and compact integration. With low operating current and defined sensitivity output, this module is suitable for systems requiring dust concentration measurement within controlled environments.

Key Features

Operates on a DC power supply with wide voltage tolerance
Low peak operating current
Analog voltage output proportional to particle concentration
Compact module size for easy integration
Stable performance across a broad operating temperature range

Technical Specifications

Parameter	Specification
Power Supply Voltage	DC 5 ± 2 V
Operating Current	20 mA (peak)
Sensitivity	0.5 V / (0.1 mg/m³)
Minimum Detection Level of Particles	0.8 m
Clean Air Voltage	0.9 V (typ.)
Working Temperature	-10 ~ 65
Storage Temperature	-20 ~ 80
Module Size	46 mm × 30 mm × 17.6 mm

This dust sensor module combines precise electrical response with a compact form factor, making it suitable for a wide range of dust monitoring and detection system designs.
