LM317 Module
$6.00

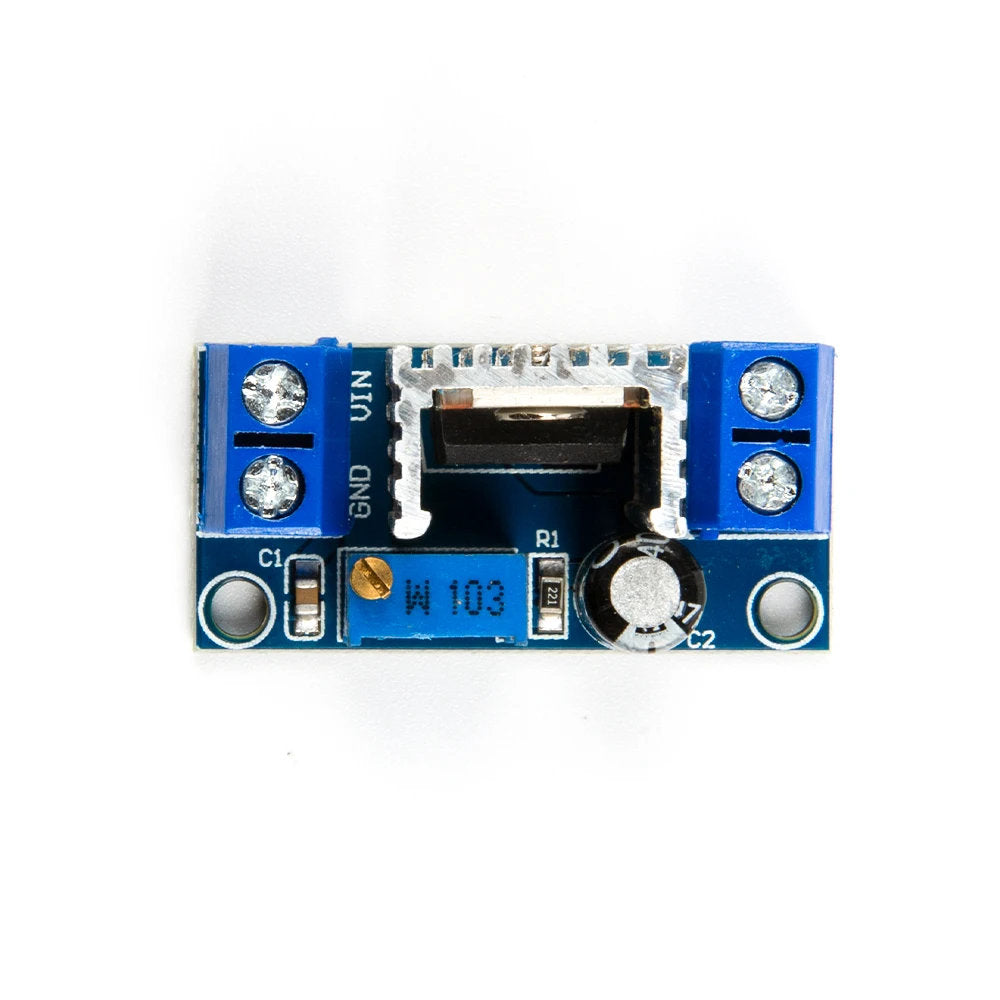

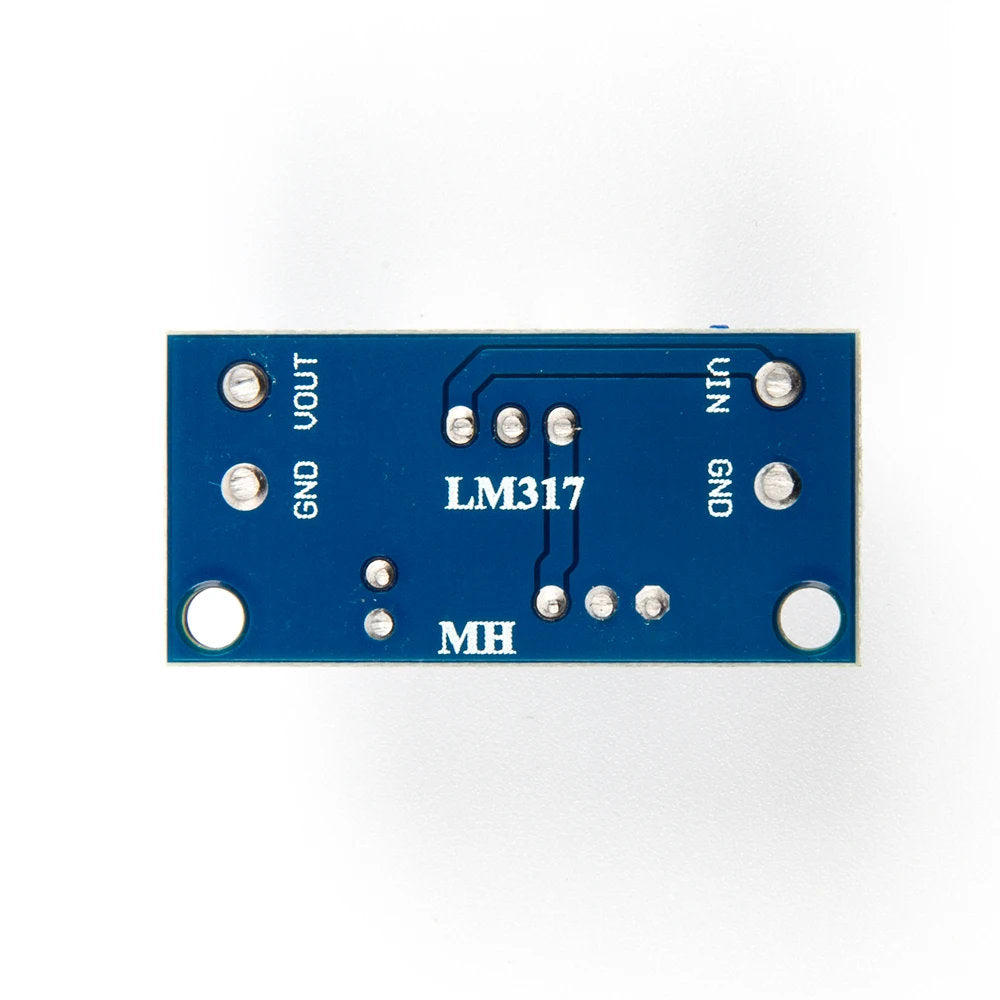

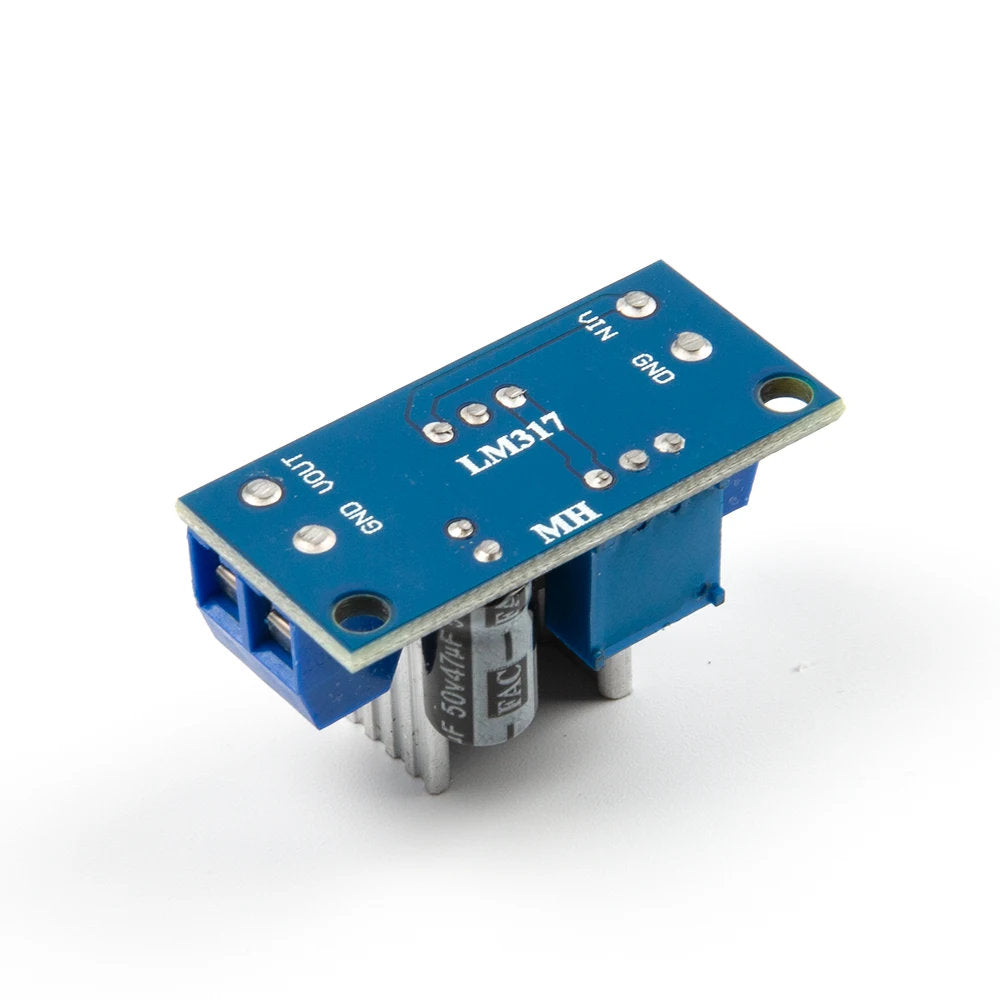

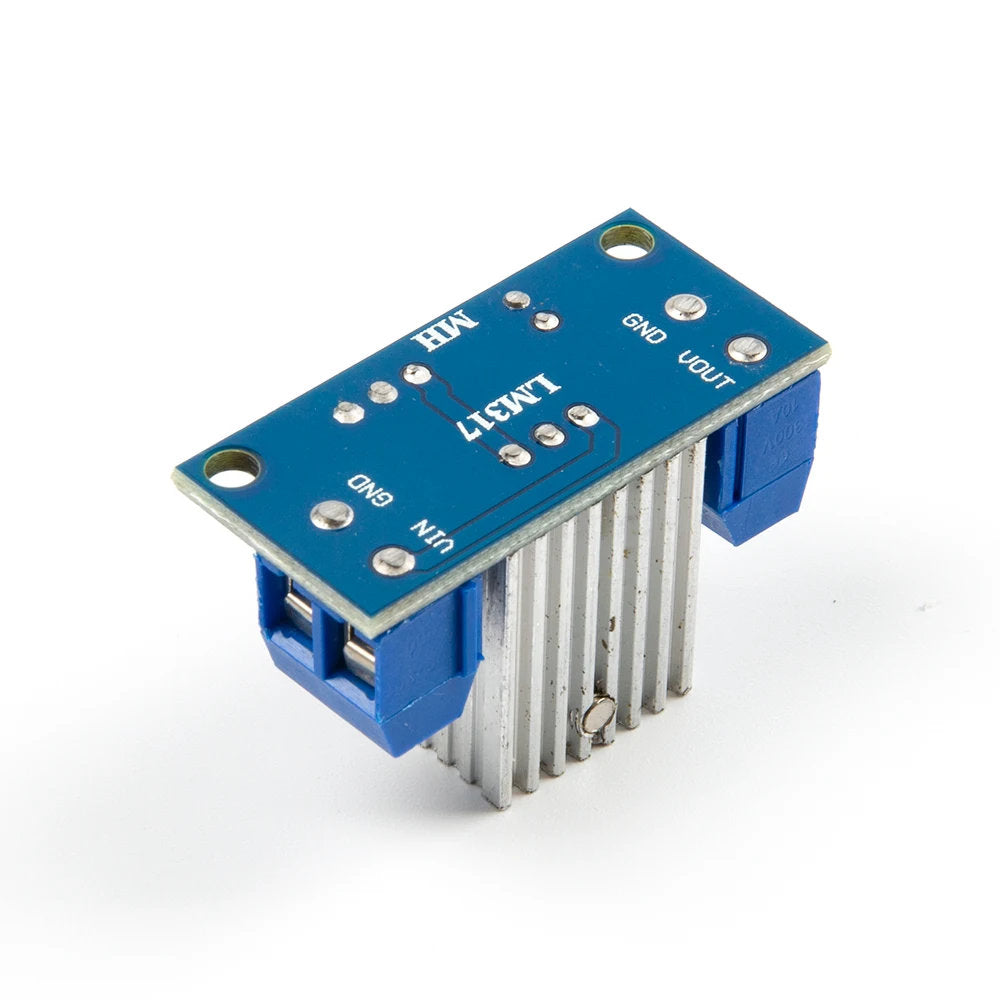

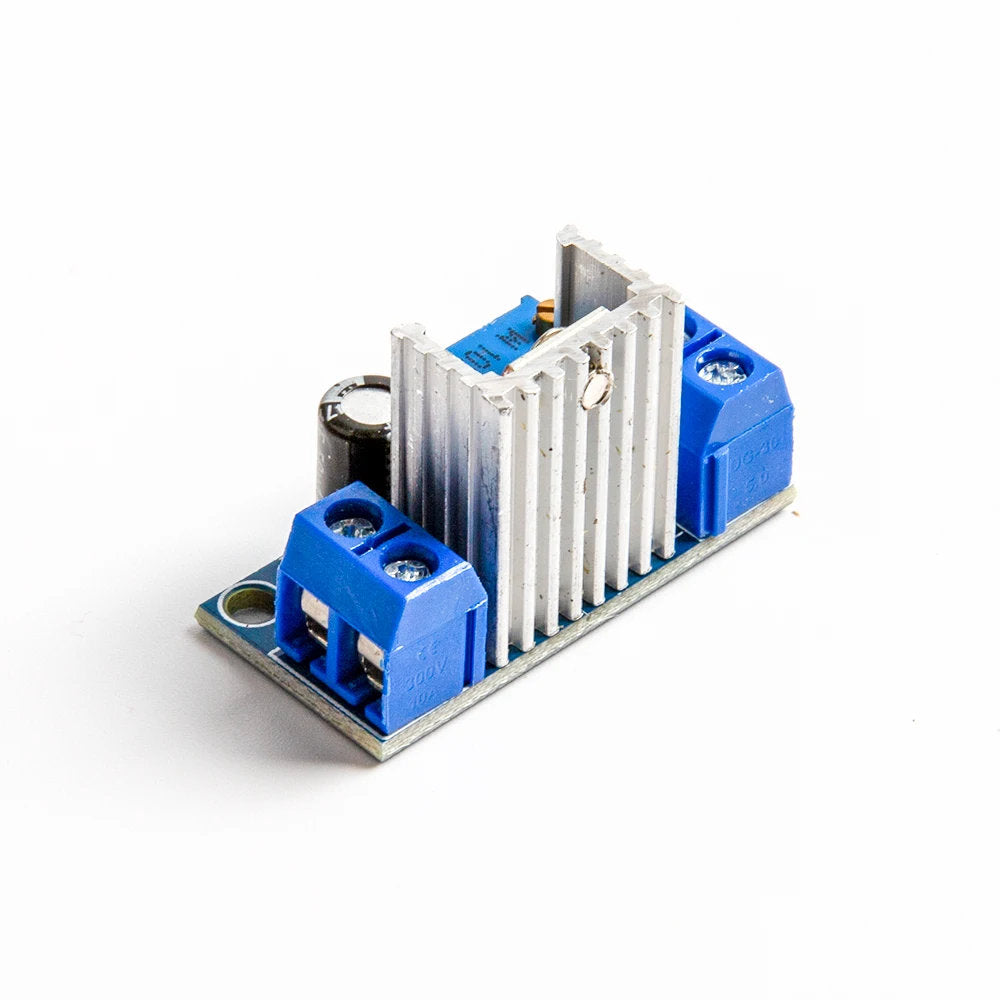

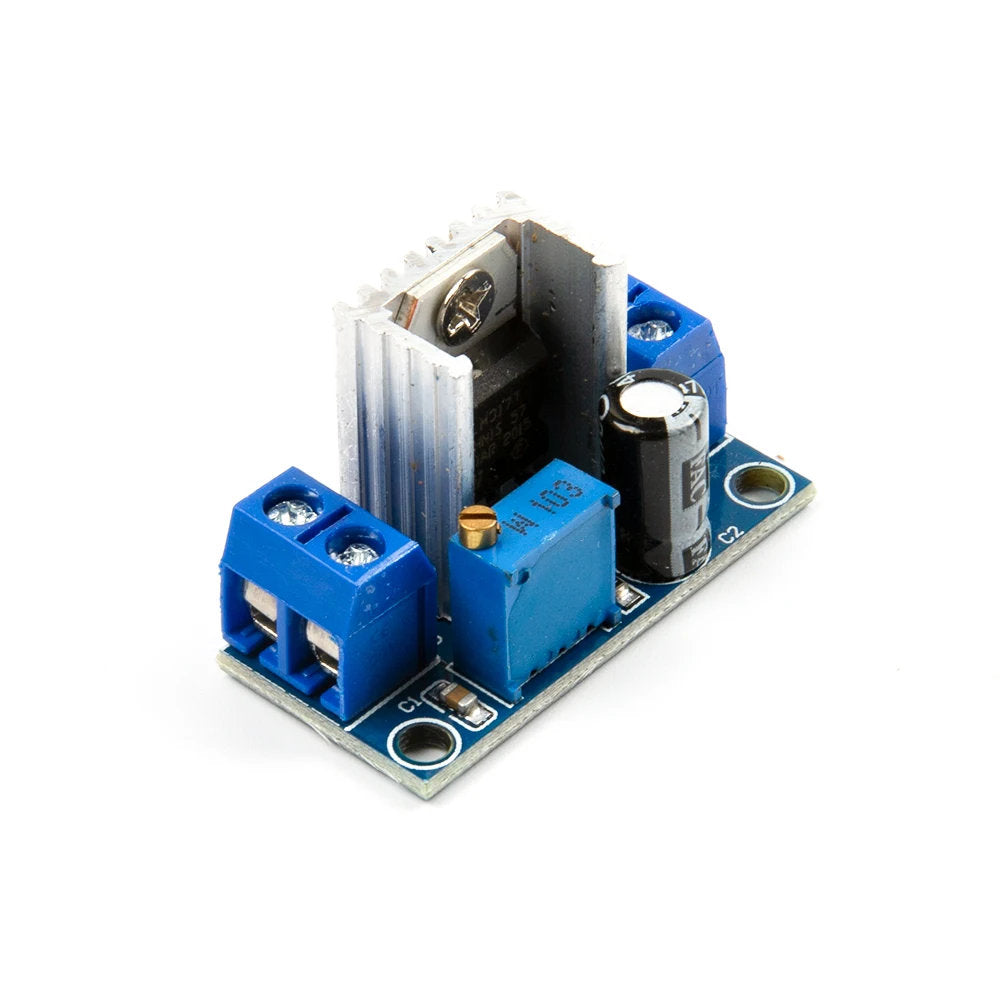

LM317 Linear Voltage Regulator DC Module Board – Adjustable 1.2V–37V Output
The LM317 linear voltage regulator module provides adjustable DC output voltage within a wide range. Designed for applications requiring stable, adjustable power regulation, this module allows precise voltage control through an onboard potentiometer.
Important Usage Note
-
If the input voltage is the same as the output voltage, the output voltage cannot be adjusted.
-
Before connecting to the power supply, rotate the potentiometer 20 turns anti-clockwise.
-
After connecting to the power supply, the output voltage becomes adjustable.
Package Contents
-
1 × LM317
Specifications
| Parameter | Description |
|---|---|
| Adjustable Output Voltage Range | 1.2V to 37V |
| Voltage Input | 4.2V to 40V |
| Input–Output Voltage Differential (VI–VO) | 40V DC (max) |
| Output Current | 1.5A (min), 2.2A (typ) |
| Current Output | 1.5A |
| Operating Temperature | -55℃ to +150℃ |
| Operating Temperature | 0℃ to 125℃ |
| Characteristic Frequency | 100 MHz |
| Input Connection | VIN is +, GND is − |
| Output Connection | VPUT is +, GND is − |
| Module Size | 35.6mm × 16.8mm (1.4 × 0.66 inch) |
This adjustable LM317 regulator module offers flexible voltage control in a compact form factor, suitable for a wide range of DC power regulation needs.
