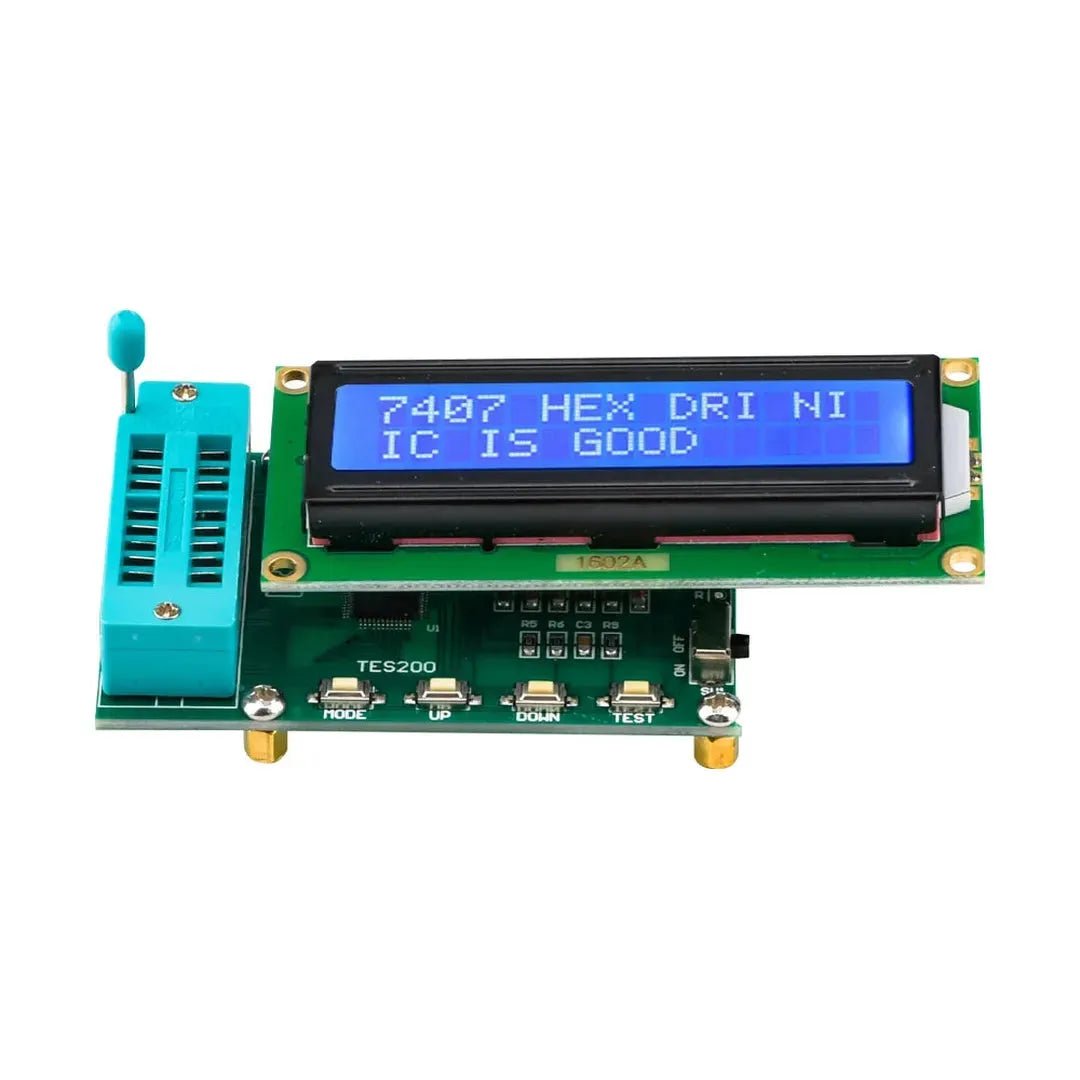

TES200 74/40 Series Logic IC Tester

Name: TES200 74/40 Series Logic IC Tester
Brand: 38-3D
Price: 53.00 GBP
Availability: InStock

$53.00

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

TES200 74/40 Series Logic IC Tester

$53.00

TES200 74/40 Series Logic IC Tester

Mga Highlight ng Produkto:

Malawak na Application: Sinusubok ang higit sa 200 mga uri ng digital integrations mula sa 74 at 40 series.
Dali ng Paggamit: Mga simpleng pangunahing operasyon para sa pagpili at pagsubok ng mga IC.
Mabilis na Tugon: Nagbibigay ng mga resulta sa kasing liit ng 3 segundo.
Power Supply: Gumagana sa 7-12V DC.

Mga Tampok:

Sinusuri ang pagsasama ng lohika upang matukoy kung aling gate ang may sira.
7-12V operating boltahe na may <30mA kasalukuyang.
Gumagana sa loob ng -40 ℃ hanggang 65 ℃.
May kasamang mga function para sa pagpili at pagsubok ng mga uri ng pagsasama sa pamamagitan ng mga button.

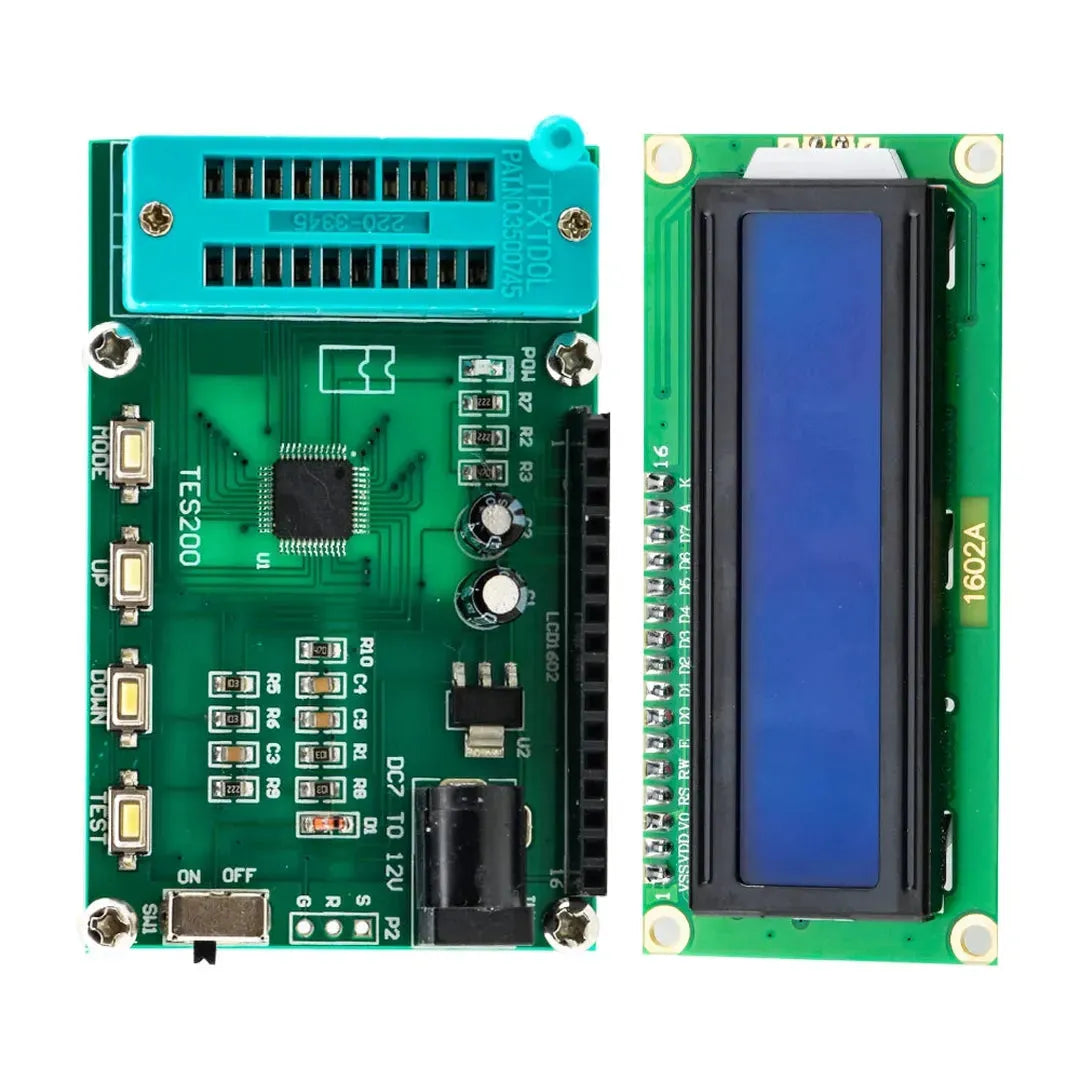

Interface:

Interface ng Power Supply: DC header D13 (panloob na positibo, panlabas na negatibo).
Power Switch: ON/OFF na estado.
Mga Pindutan: MODE (piliin ang uri ng integration), UP/DOWN (navigate ang mga uri ng integration), TEST (simulan ang pagsubok).

Sinusuportahang Serye:

74 Serye:
7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409

7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419

7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432

7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443

7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473

7474 ,7475 ,7476 ,7477 ,7478 ,7480 ,7482 ,7483 ,7485 ,7486

7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108

74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134

74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151

74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164

74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182

74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247

74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266

74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353

74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395

74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670
40,45 Serye:
cd4000, cd4001, cd4002, cd4006, cd4007, cd4008, cd4009, cd4010, cd4011, cd4012.

cd4013, cd4014, cd4015, cd4016, cd4017, cd4018, cd4019, cd4020, cd4021, cd4022.

cd4023, cd4024, cd4025, cd4026, cd4027, cd4028, cd4029, cd4030, cd4033, cd4035.

cd4040, cd4042, cd4043, cd4044, cd4048, cd4049, cd4050, cd4051, cd4052, cd4053.

cd4060, cd4066, cd4068, cd4069, cd4070, cd4071, cd4072, cd4073, cd4075, cd4076.

cd4077, cd4078, cd4081, cd4082, cd4085, cd4093, cd4094, cd4099, cd4502, cd4503.

cd4504, cd4510, cd4511, cd4512, cd4516, cd4518, cd4520, cd4522, cd4526, cd4529.

cd4532, cd4539, cd4543, cd4555, cd4556, cd4584, cd40106, cd40110, cd40161, cd40162, cd40174, cd40175, cd40192, 39

Kasama sa Package ang:

1 x TES200 Logic IC Tester

Tamang-tama ang tool na ito para sa mga pagsubok sa digital integration sa iba't ibang application, na tinitiyak ang tumpak at mabilis na pagtuklas ng mga sira na gate.
