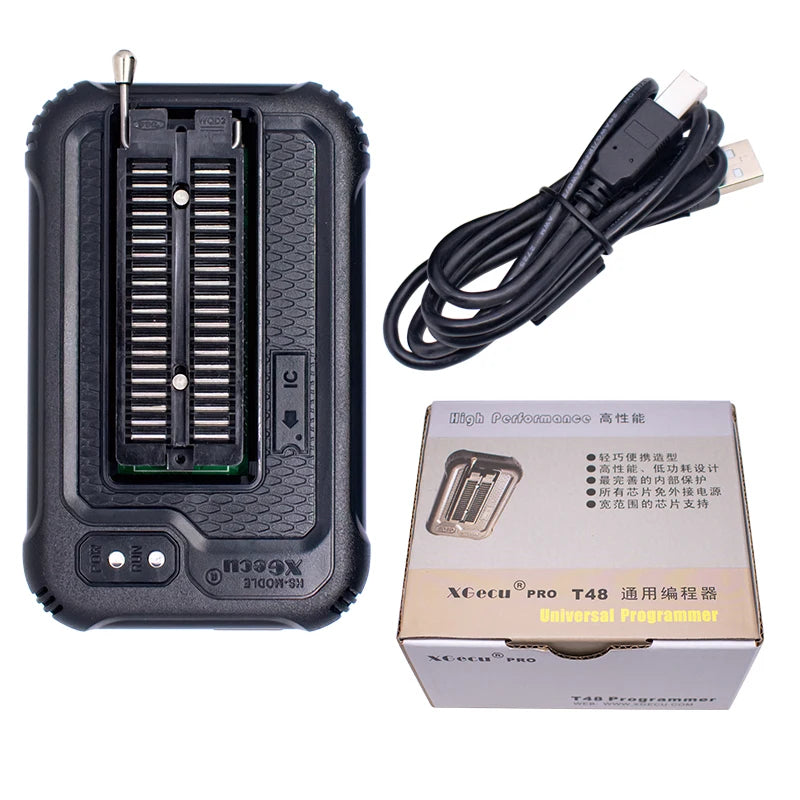

XGECU T48
$85.00
High Speed T48 (TL866 3rd Generation) Programmer
Overview
The T48 is the latest generation programmer from XGecu, representing a significant upgrade from the legacy TL866II Programmer. This brand new device arrives fully tested and updated with the latest firmware.
Key Features
- Stable and extremely fast programming performance
- High cost performance ratio
- Simple and intuitive operation
- 16-pin multifunctional ISP interface
- Ultra-portable, modern design
Technical Specifications
| Specification | Details |
|---|---|
| Model | T48 (TL866-3G) |
| Processor | 32-bit MCU, 120 MHz |
| PCB Design | 4-layer |
| USB Interface | USB 2.0 HS, 480 MHz |
| ISP Channels | 16 channels |
| Total Dedicated I/O | 56 channels |
| High-Speed, High-Voltage Isolation Channels | 56 channels |
| VCC Voltage Range | 1.8–6.5V (64 adjustable levels) |
| VPP Voltage Range | 9V–25V (64 adjustable levels) |
| Power Consumption | 5V, <500mA |
| Static Power Consumption | 60mA |
| External Power Supply | Not required |
| Self-Test Function | Yes—tests VPP, VCC, GND, and I/O pins |
| Supported Operating Systems | Windows XP, 2003, 2008, Vista, Windows 7, 8, 10, 11 |
| Multi-Device Support | Up to 4 programmers per computer simultaneously |
Applications
Ideal for developers, maintenance personnel, small-batch production, and high-volume chip programming.
What's Included
- 1 × T48 Programmer
- 1 × USB Cable
